Open-frame construction, through-hole mount

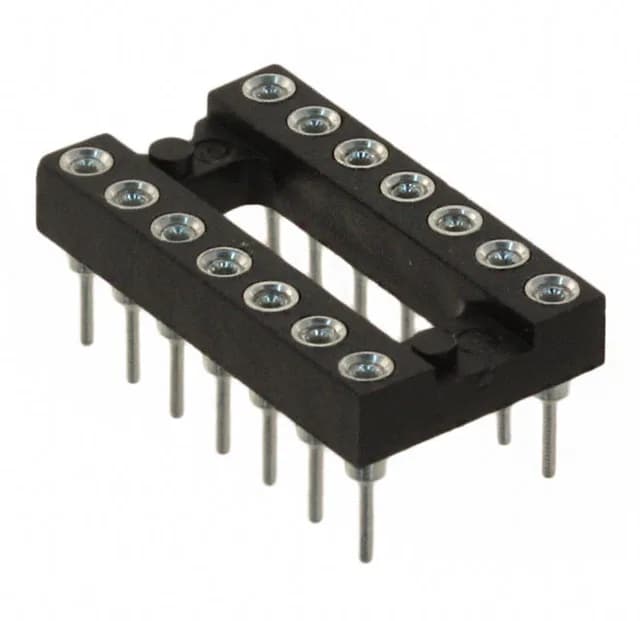

The 110-41-314-41-001000: The open-frame PCT/polyester housing exposes the contacts for airflow and inspection; termination posts are 0.125" (3.18mm) long for standard through-hole soldering.
Mill-Max 110-41-314-41-001000 DIP Socket, 14 Pos, 2.54mm
MPN110-41-314-41-001000
Active
Mill-Max 110 series DIP socket, order code 110-41-314-41-001000, 14 positions (2 x 7), 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination, open frame.
$1.6000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series110
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 110 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
| Number of positions or pins | 14 (2 x 7) |
Product details
Frequently asked questions
What compliance documentation does Mill-Max provide for this socket?
The 110-41-314-41-001000 is RoHS3 compliant per the manufacturer's declaration.
