DIP socket, 16 positions, 0.100" pitch

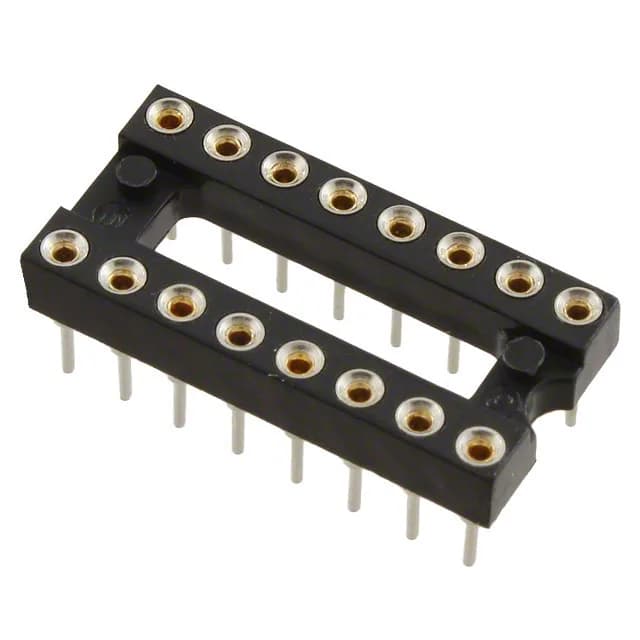

The 110-41-316-41-001000 is the 16-position (2 x 8) member of Mill-Max's 110 series DIP socket line for 0.300" (7.62mm) row-spacing ICs. Gold-plated beryllium copper mating contacts rated 3 A, with tin-plated brass alloy post contacts. Through-hole solder termination with a 0.125" (3.18mm) post length.
Position count and footprint
The 16-position 110-41-316-41-001000 uses the same 0.100" (2.54mm) pitch and 0.300" (7.62mm) row spacing as all 110-series DIP sockets — the footprint is shared across the series, so match the position count to the IC lead count.
