Mill-Max Manufacturing Corp. 110-41-318-41-001000 — IC & Device Sockets

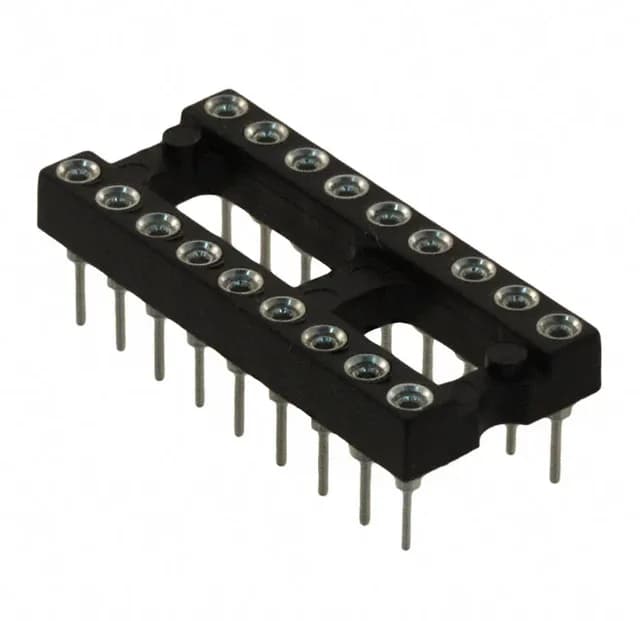

Mill-Max 110-41-318-41-001000 DIP Socket, 18-Pos

MPN110-41-318-41-001000
Active

Mill-Max 110 series DIP socket, order code 110-41-318-41-001000, 18 positions (2 x 9), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, 3 A, gold mating contacts, through-hole, solder termination, open frame.

$2.0300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series110
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

110-41-318-41-001000 key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
Series110
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 125°C
Housing materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact material - postBrass Alloy
Contact material - matingBeryllium Copper
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)

All specifications

110-41-318-41-001000 additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold
Termination post length0.125\" (3.18mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating10.0µin (0.25µm)
Number of positions or pins18 (2 x 9)

Product details

18-position DIP socket, 0.100" pitch, open frame

The 110-41-318-41-001000 is the 18-position (2 x 9) member of Mill-Max's 110 series DIP socket line, configured for 0.3" (7.62mm) row spacing. Gold-plated beryllium copper mating contacts rated 3 A per position, with tin-plated brass alloy solder tails. Through-hole termination with a 0.125" (3.18mm) post length.

Pitch and footprint: 0.100" on both axes

Mating and post pitch are both 0.100" (2.54mm) — the same grid as standard DIP ICs. The 0.3" row spacing matches narrow-body DIP packages; the open-frame construction allows air flow and visual inspection of solder joints on the board side.

Frequently asked questions

What is the position count and grid arrangement for the 110-41-318-41-001000?

The socket has 18 positions arranged in a 2 x 9 grid on 0.100" (2.54mm) pitch with 0.3" (7.62mm) row spacing, matching standard 18-pin DIP ICs.

What compliance documentation does Mill-Max provide for the 110-41-318-41-001000?

The socket is RoHS3 compliant. No UL or IEC ratings are listed in the available documentation.
