Mill-Max Manufacturing Corp. 110-41-640-41-001000 — IC & Device Sockets

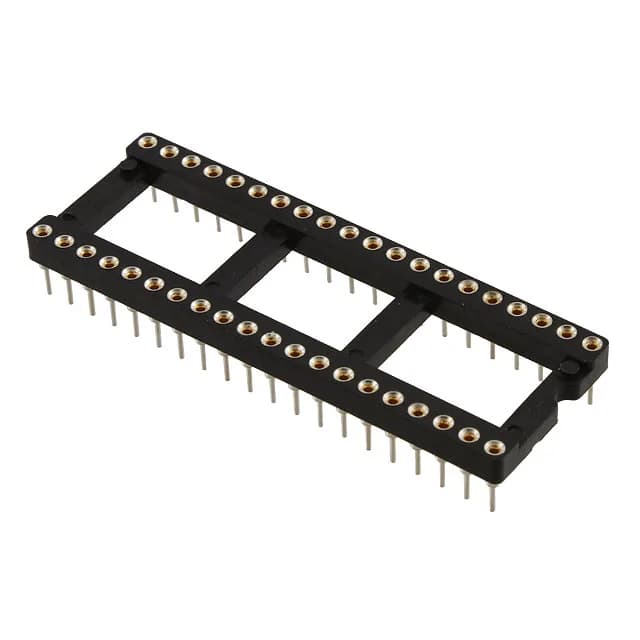

Mill-Max 110-41-640-41-001000 DIP Socket, 40-Pos

MPN110-41-640-41-001000
Active

Mill-Max 110 series DIP socket, order code 110-41-640-41-001000, 40 positions, dual row, 0.100" (2.54mm) pitch, 0.6" (15.24mm) row spacing, 3 A, gold-plated mating contacts, through-hole, solder termination.

$3.7300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series110
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

110-41-640-41-001000 key specifications
ParameterValue
TypeDIP, 0.6\" (15.24mm) Row Spacing
Series110
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 125°C
Housing materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact material - postBrass Alloy
Contact material - matingBeryllium Copper
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)

All specifications

110-41-640-41-001000 additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold
Termination post length0.125\" (3.18mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating10.0µin (0.25µm)
Number of positions or pins40 (2 x 20)

Product details

Through-hole DIP socket for 40-pin ICs

The 110-41-640-41-001000 is a 40-position DIP socket from Mill-Max's 110 series, arranged in a 2 x 20 grid with 0.6" (15.24mm) row spacing. Gold-plated beryllium copper mating contacts rated 3 A per position, with tin-plated brass alloy solder tails for through-hole termination.

Open-frame construction and temperature range

Open-frame design allows airflow around the IC body during operation. Housing is PCT/polyester rated for -55°C to 125°C operating range.

Frequently asked questions

What is the pitch and row spacing of this DIP socket?

Mating and post pitch is 0.100" (2.54mm). Row spacing is 0.6" (15.24mm), standard for 40-pin DIP ICs.
