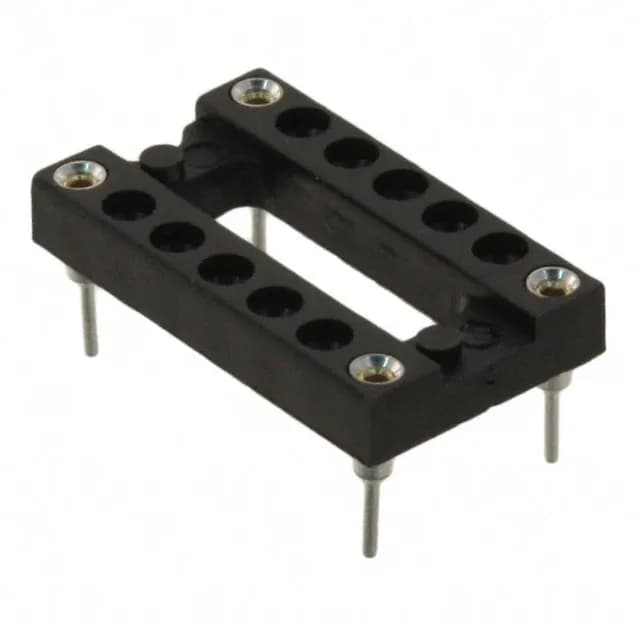

Mill-Max Manufacturing Corp. 110 series DIP socket, order code 110-43-314-10-001000, 14 positions (2 x 7, 4 loaded), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, gold mating contacts, tin post contacts, through-hole solder termination, open frame, tube package.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 110 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 14 (2 x 7), 4 Loaded |
The 110-43-314-10-001000 is a 14-position DIP socket from Mill-Max's 110 series, arranged in a 2 x 7 grid with 4 positions loaded — the remaining 10 positions are unpopulated, leaving the open frame structure accessible for air flow or component clearance. Mating contacts are gold-plated beryllium copper rated 3 A, and the post contacts are tin-plated brass alloy. The socket mounts through-hole and terminates by soldering.
The row spacing is 0.3" (7.62mm), standard for 14-pin DIP packages.
The socket has 14 positions in a 2 x 7 grid, but only 4 are loaded with contacts. The remaining 10 positions are unpopulated, leaving the open frame exposed.
