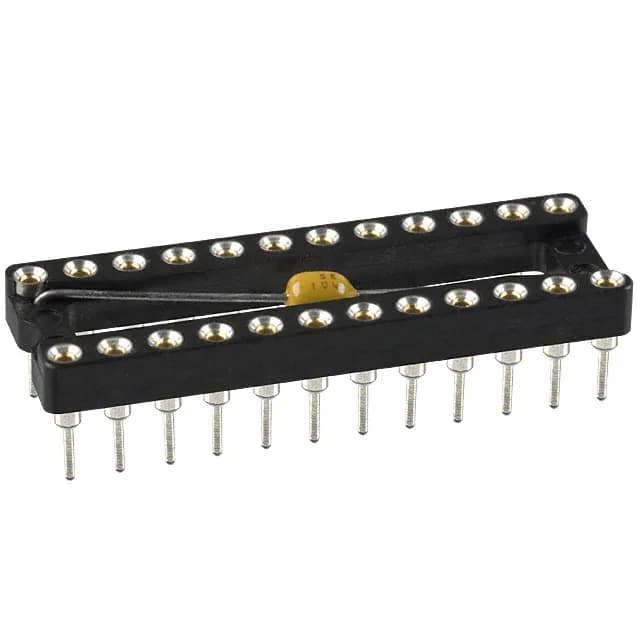

DIP socket, 24-position, open-frame with decoupling capacitor
The 110-43-324-41-801000 is the 24-position member of Mill-Max's series 110 DIP socket line, arranged in a 2 x 12 grid on 0.100" (2.54mm) pitch with 0.3" (7.62mm) row spacing. Gold-plated beryllium copper mating contacts rated 3 A per pin, with a through-hole solder termination and a -55°C to 125°C operating range.
Open-frame body carries a decoupling capacitor
The open-frame PCT/polyester housing exposes the solder joints for inspection and includes an integrated decoupling capacitor across the power pins, reducing the need for a separate capacitor on the board.
