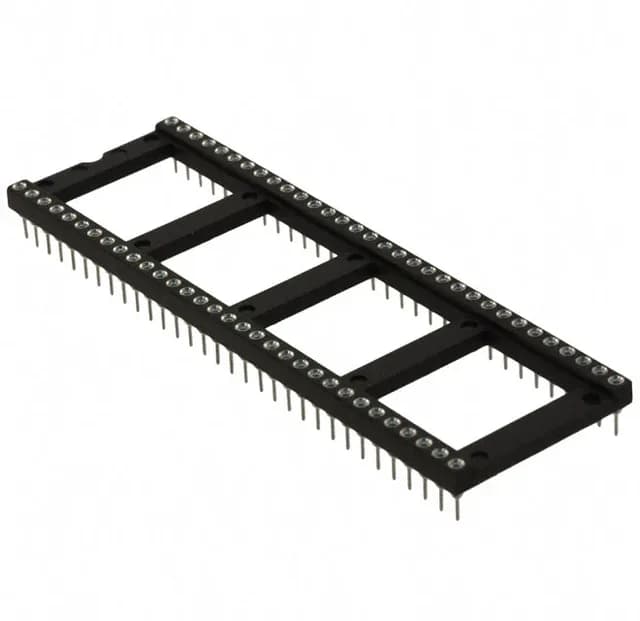

Mill-Max 110 series DIP socket, order code 110-43-964-41-001000, 64 positions (2 x 32), 0.100" (2.54mm) pitch, 0.9" (22.86mm) row spacing, 3 A, gold mating contacts, through-hole solder termination, open-frame construction.
| Parameter | Value |
|---|---|
| Type | DIP, 0.9\" (22.86mm) Row Spacing |
| Series | 110 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 64 (2 x 32) |
The 110-43-964-41-001000: Through-hole solder termination into a PCT/polyester open-frame body rated -55°C to 125°C.
The open-frame body allows air circulation and visual inspection of solder joints on the board side.
The socket is ROHS3 compliant. Mill-Max provides RoHS compliance documentation per the product series.
