Through-hole DIP socket for 6-pin ICs

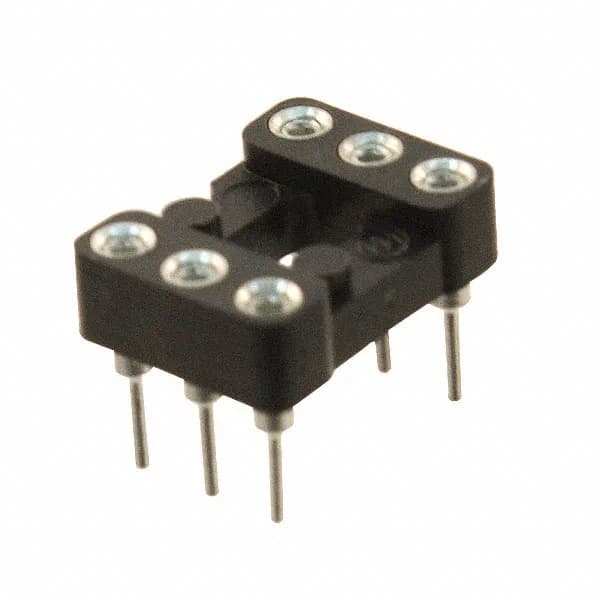

The 110-44-306-41-001000 is a 6-position (2 x 3) DIP socket from Mill-Max's 110 series, designed for through-hole soldering into a 0.100" (2.54mm) pitch grid with 0.300" (7.62mm) row spacing. Rated 3 A per contact, the socket uses tin-plated beryllium copper mating contacts and tin-plated brass alloy post contacts, with 100.0µin (2.54µm) of tin on the mating side and 200.0µin (5.08µm) on the post.
Open-frame construction and temperature range
The open-frame PCT housing allows airflow around the IC during soldering and operation, supporting a -55°C to 125°C operating range. The 0.125" (3.18mm) termination post length suits standard through-hole PCB thicknesses.
