Mill-Max Manufacturing Corp. 110-44-324-41-001000 — IC & Device Sockets

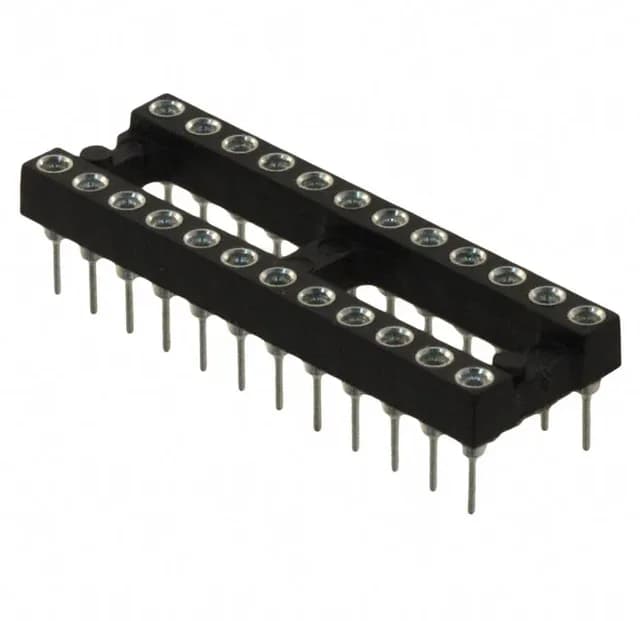

Mill-Max 110-44-324-41-001000 DIP Socket 24-Pin 0.100" Pitch

MPN110-44-324-41-001000
Active

Mill-Max 110 series DIP socket, order code 110-44-324-41-001000, 24 positions (2 x 12), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, tin-plated mating contacts, through-hole solder termination, open-frame PCT housing.

$1.6500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series110
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

110-44-324-41-001000 key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
Series110
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 125°C
Housing materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact material - postBrass Alloy
Contact material - matingBeryllium Copper
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)

All specifications

110-44-324-41-001000 additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingTin
Termination post length0.125\" (3.18mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating100.0µin (2.54µm)
Number of positions or pins24 (2 x 12)

Product details

Through-hole DIP socket for 0.3" row-spacing ICs

The 110-44-324-41-001000 is the 24-position (2 x 12) member of Mill-Max's 110 series DIP socket line, designed for ICs with 0.3" (7.62mm) row spacing. Tin-plated mating and post contacts carry a 3 A current rating across a -55°C to 125°C operating range. The open-frame PCT housing allows airflow under the device for improved thermal management.

Pin layout and termination details

Mating and post pitch are both 0.100" (2.54mm), with a termination post length of 0.125" (3.18mm) for through-hole soldering. The beryllium copper mating contact is finished with 100.0µin (2.54µm) tin; the brass alloy post contact carries 200.0µin (5.08µm) tin.
