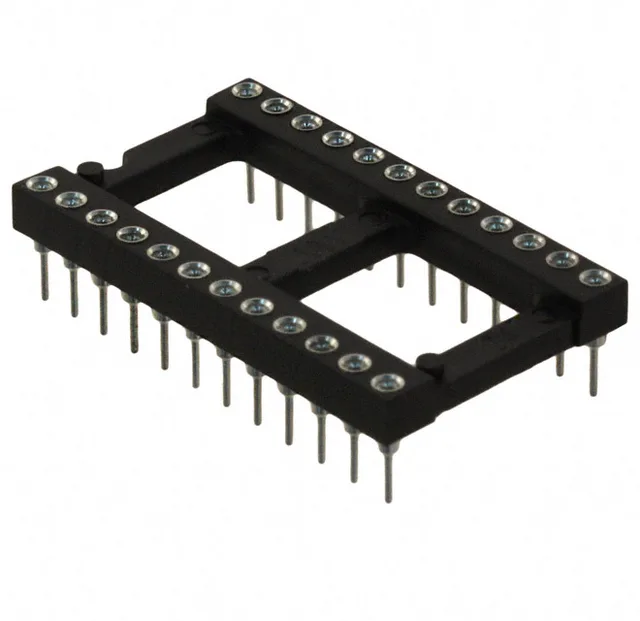

Mill-Max 110 series DIP socket, order code 110-44-624-41-001000, 24 positions (2 x 12), 0.100" (2.54 mm) pitch, 0.6" (15.24 mm) row spacing, 3 A, tin-plated mating contacts, through-hole solder termination, open-frame construction.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 110 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
| Number of positions or pins | 24 (2 x 12) |
The 110-44-624-41-001000 is the 24-position member of Mill-Max's 110 series open-frame DIP socket line, configured for a 0.6" (15.24 mm) row spacing. Mating contacts are tin-plated beryllium copper rated 3 A; the housing is PCT/polyester rated for -55°C to 125°C operating range.
The 110-44-624-41-001000 carries an Active lifecycle status and is ROHS3 Compliant.
The 110-44-624-41-001000 is ROHS3 Compliant.
