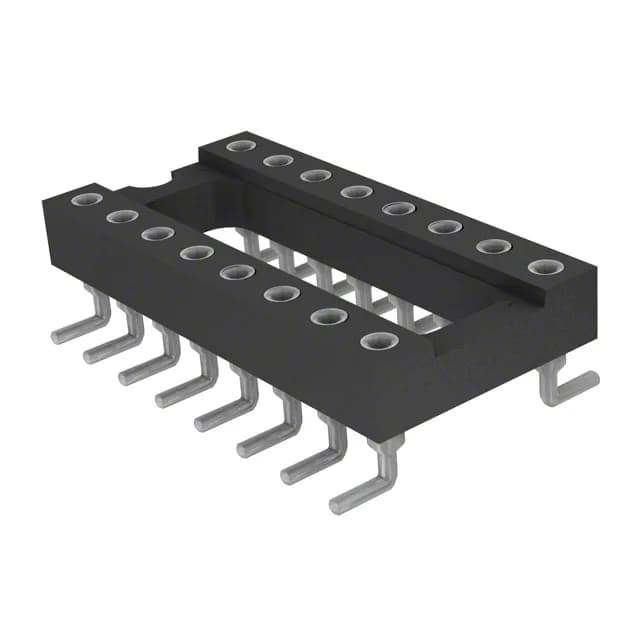

Mill-Max 110 series DIP socket, order code 110-47-316-41-105000, 16 positions (2 x 8), 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, beryllium copper contact, surface mount, solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 110 |
| Mounting | Surface Mount |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 16 (2 x 8) |
The 110-47-316-41-105000 is the 16-position (2 x 8) member of Mill-Max's 110 series DIP socket line, designed for 0.300" (7.62mm) row spacing DIP packages. Rated 3 A per contact with gold-plated mating contacts on beryllium copper and a tin-plated post for solder termination; the open-frame PCT housing handles -55°C to 125°C.
Supplied by Mill-Max Manufacturing Corp. under the 110 series. Quoted to order against the BOM quantity; availability confirmed at RFQ.
The 110 series includes other position counts at the same 0.100" pitch and 0.300" row spacing, but each position count is a distinct order code.
