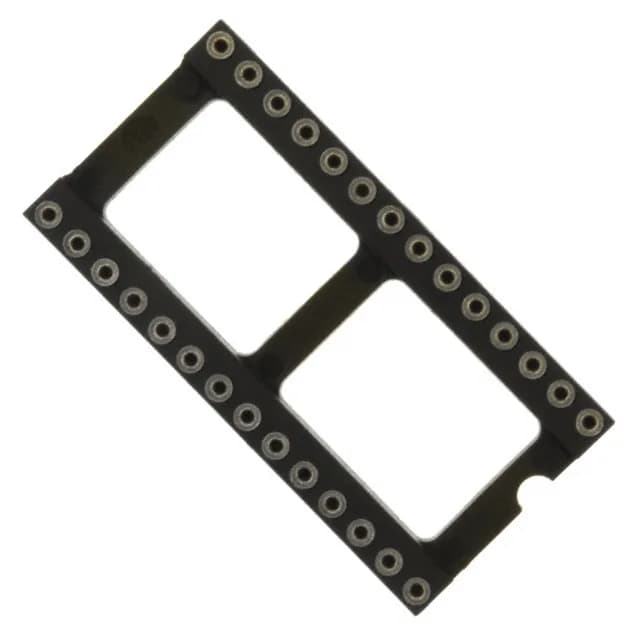

Mill-Max Manufacturing Corp. 110 series DIP socket, order code 110-47-628-41-605000, 28 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 110 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 28 (2 x 14) |
The 110-47-628-41-605000 is a 28-position DIP socket in Mill-Max's 110 series, laid out on a 0.6" (15.24mm) row spacing with 0.100" (2.54mm) pitch between contacts. Gold-plated mating contacts on beryllium copper clips rated 3 A per contact, with a through-hole solder termination and an open-frame housing in PCT/polyester.
The 110-47-628-41-605000 is ROHS3 compliant.
