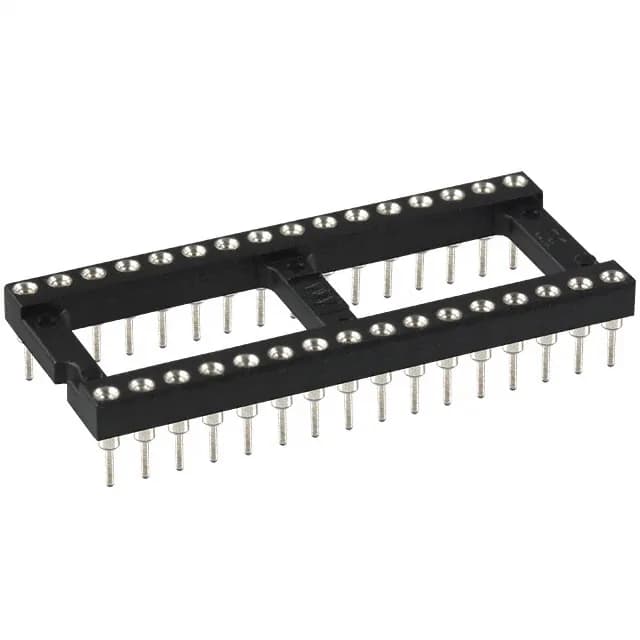

Mill-Max Manufacturing Corp. 110-99-632-41-001000
MPN110-99-632-41-001000
Active
CONN IC DIP SOCKET 32POS TINLEAD
$2.2000Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series110
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 110 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin-Lead |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 200.0µin (5.08µm) |
| Number of positions or pins | 32 (2 x 16) |
