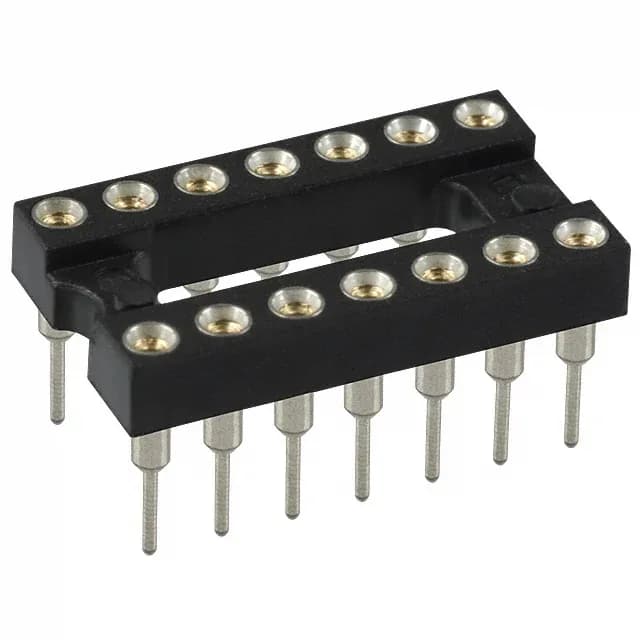

Mill-Max 111 series DIP socket, order code 111-43-314-41-001000, 14 positions (2 x 7), 0.100" (2.54 mm) pitch, 0.3" (7.62 mm) row spacing, gold-plated beryllium copper mating contacts, through-hole solder termination, open-frame construction.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 111 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 14 (2 x 7) |
The 111-43-314-41-001000 is the 14-position (2 x 7) member of Mill-Max's 111 series DIP socket line, arranged on 0.100" (2.54 mm) pitch with 0.3" (7.62 mm) row spacing. Mating contacts are gold-plated beryllium copper (30.0 µin gold) rated for 3 A per contact; the open-frame PCT/polyester housing allows airflow around the device during operation.
RoHS3 compliant. No UL or IEC listing in the available documentation.
