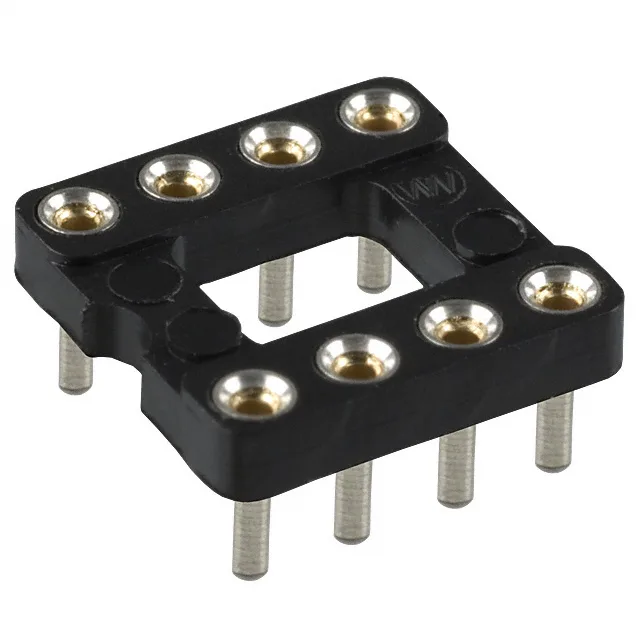

Mill-Max 115 series DIP socket, order code 115-47-308-41-001000, 8 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole solder termination.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 115 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.108\" (2.74mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 8 (2 x 4) |
The 115-47-308-41-001000 is the 8-position member of Mill-Max's 115 series open-frame DIP socket line, arranged in a 2 x 4 grid with 0.300" (7.62mm) row spacing. Gold-plated beryllium copper mating contacts rated 3 A per pin, through-hole solder termination, and a PCT/polyester housing rated -55°C to 125°C.
