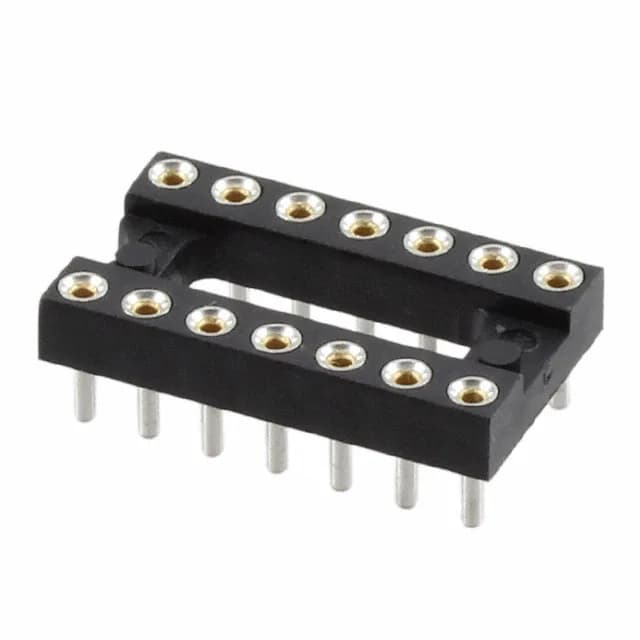

Mill-Max 115 series DIP socket, order code 115-47-314-41-001000, 14 positions (2 x 7), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, 3 A, gold mating contacts, through-hole solder, open frame, tube package.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 115 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.108\" (2.74mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 14 (2 x 7) |
The 115-47-314-41-001000 is the 14-position (2 x 7) member of Mill-Max's 115 series open-frame DIP socket line, on a 0.100" (2.54mm) pitch with a 0.3" (7.62mm) row spacing. Gold-plated mating contacts rated 3 A, through-hole solder termination, and a PCT/polyester housing rated from -55°C to 125°C.
