Mill-Max Manufacturing Corp. 115-47-316-41-001000 — IC & Device Sockets

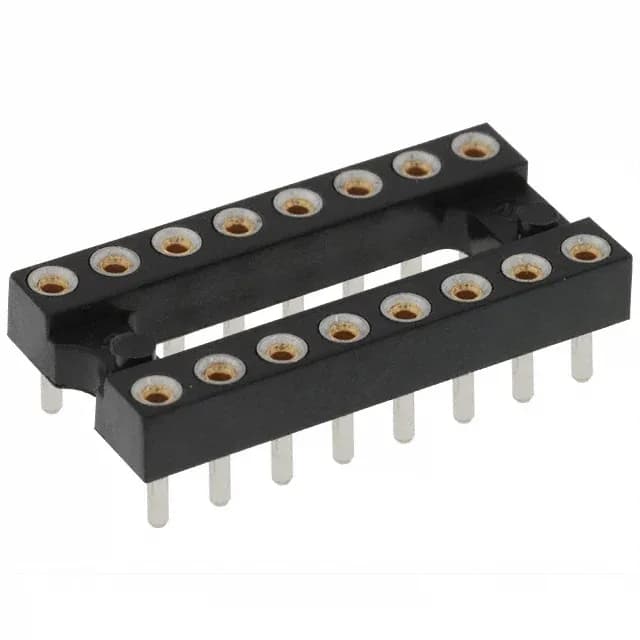

Mill-Max 115-47-316-41-001000 DIP Socket 16-Pos 2.54mm

MPN115-47-316-41-001000
Active

Mill-Max 115 series DIP socket, order code 115-47-316-41-001000, 16 positions, 2 x 8 grid, 0.100" (2.54 mm) pitch, 0.300" (7.62 mm) row spacing, 3 A, gold mating contacts, tin post contacts, through-hole solder termination, open frame.

$1.4400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series115
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

115-47-316-41-001000 key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
Series115
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 125°C
Housing materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact material - postBrass Alloy
Contact material - matingBeryllium Copper
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)

All specifications

115-47-316-41-001000 additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold
Termination post length0.108\" (2.74mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - matingFlash
Number of positions or pins16 (2 x 8)

Product details

16-pin DIP socket for through-hole assembly

The 115-47-316-41-001000 is the 16-position member of Mill-Max's 115 series open-frame DIP socket line, arranged in a 2 x 8 grid with 0.300" (7.62 mm) row spacing. Rated 3 A per contact, it carries gold-plated beryllium copper mating contacts and tin-plated brass alloy post contacts, with through-hole solder termination.

Contact materials and temperature range

Mating contacts are beryllium copper with flash gold finish; post contacts are brass alloy with 200.0 µin (5.08 µm) tin plating. The PCT/polyester housing supports an operating temperature range of -55°C to 125°C.

Frequently asked questions

What compliance documentation does Mill-Max provide for 115-47-316-41-001000?

RoHS3 Compliant (ROHS3 Compliant) is the listed compliance level.
