Mill-Max Manufacturing Corp. 115-93-318-41-003000 — IC & Device Sockets

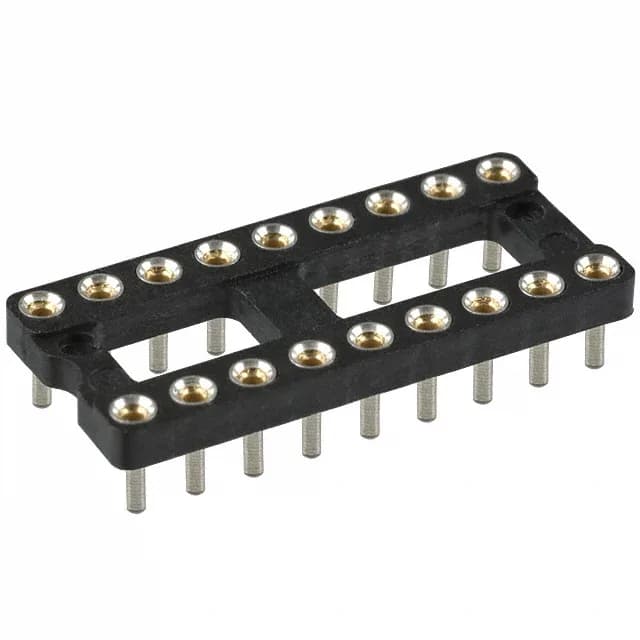

Mill-Max 115-93-318-41-003000 DIP Socket, 18-Pin

MPN115-93-318-41-003000
Active

Mill-Max 115 series DIP socket, order code 115-93-318-41-003000, 18 positions (2 x 9), 0.100" (2.54mm) pitch, 3 A, gold-plated beryllium copper mating contacts, through-hole solder termination, open frame, tube package.

$2.6600Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series115
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

115-93-318-41-003000 key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
Series115
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 125°C
Housing materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact material - postBrass Alloy
Contact material - matingBeryllium Copper
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)

All specifications

115-93-318-41-003000 additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Termination post length0.108\" (2.74mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating30.0µin (0.76µm)
Number of positions or pins18 (2 x 9)

Product details

18-pin DIP socket at 0.100" pitch

The 115-93-318-41-003000 is an 18-position (2 x 9) DIP socket from Mill-Max's 115 series, using 0.100" (2.54mm) pitch on both the mating and post sides. Gold-plated beryllium copper mating contacts rated 3 A, with a through-hole solder termination and an open-frame PCT polyester housing rated -55°C to 125°C.

Plating and termination specs

Mating contacts carry 30.0µin (0.76µm) gold over beryllium copper; post contacts are brass alloy with 200.0µin (5.08µm) tin-lead finish. Termination post length is 0.108" (2.74mm).

Frequently asked questions

What is the pin grid arrangement for this socket?

18 positions in a 2 x 9 grid with 0.300" (7.62mm) row spacing and 0.100" (2.54mm) pitch between pins.
