Mill-Max Manufacturing Corp. 115-93-320-41-001000 — IC & Device Sockets

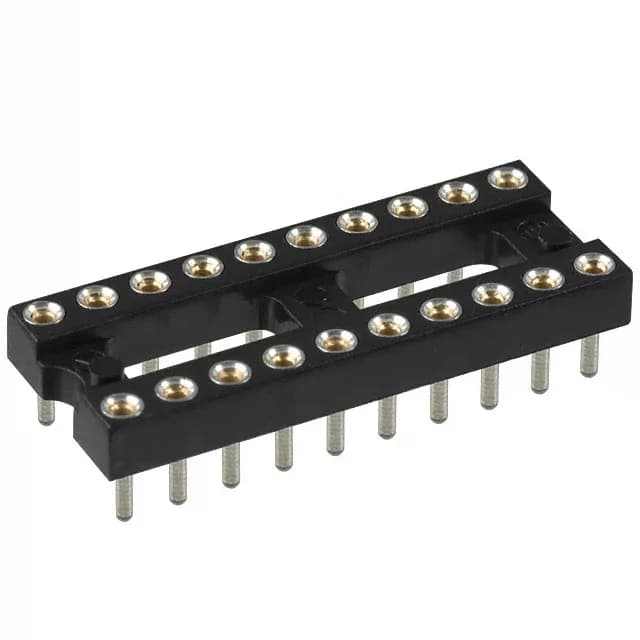

Mill-Max 115-93-320-41-001000 DIP Socket 20-Pin 2.54mm

MPN115-93-320-41-001000
Active

Mill-Max 115 series DIP socket, order code 115-93-320-41-001000, 20 positions (2 x 10), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, 3 A, gold-plated mating contacts, through-hole, solder termination.

$2.7900Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series115
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

115-93-320-41-001000 key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
Series115
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 125°C
Housing materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact material - postBrass Alloy
Contact material - matingBeryllium Copper
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)

All specifications

115-93-320-41-001000 additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Termination post length0.108\" (2.74mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating30.0µin (0.76µm)
Number of positions or pins20 (2 x 10)

Product details

20-pin DIP socket for 0.3" row spacing

The 115-93-320-41-001000 is a 20-position (2 x 10) DIP socket in Mill-Max's 115 series, arranged on 0.100" (2.54mm) pitch with 0.3" (7.62mm) row spacing. Gold-plated mating contacts rated 3 A and a -55°C to 125°C operating range suit it for production programming sockets and burn-in applications.

Open-frame construction, through-hole termination

The open-frame PCT/polyester housing allows airflow around the IC body during burn-in, and the 0.108" (2.74mm) solder-tail length matches standard 0.062" to 0.093" PCBs. Beryllium copper mating contacts with 30.0µin (0.76µm) gold finish provide consistent contact resistance over repeated insertion cycles.

Frequently asked questions

What is the closest pin-compatible alternative in the 115 series?

The 115 series includes DIP sockets in multiple position counts at the same 0.100" pitch and 0.3" row spacing. For a different circuit count, select the matching 115-series socket with the required number of positions.
