Mill-Max Manufacturing Corp. 115-93-320-41-003000 — IC & Device Sockets

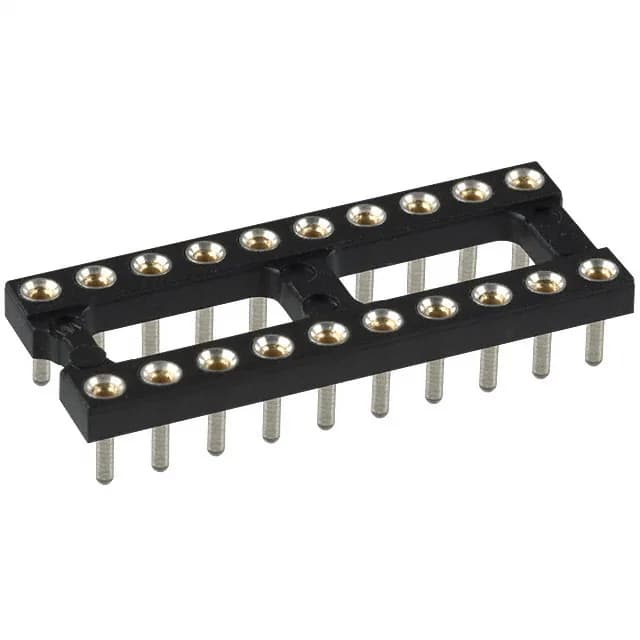

Mill-Max 115-93-320-41-003000 DIP Socket 20-Pos 2.54mm

MPN115-93-320-41-003000
Active

Mill-Max 115 series DIP socket, order code 115-93-320-41-003000, 20 positions (2 x 10), 0.100" (2.54mm) pitch, 3 A, gold-plated beryllium copper mating contacts, through-hole solder termination, open-frame construction.

$2.6300Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series115
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

115-93-320-41-003000 key specifications
ParameterValue
TypeDIP, 0.3\" (7.62mm) Row Spacing
Series115
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 125°C
Housing materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact material - postBrass Alloy
Contact material - matingBeryllium Copper
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)

All specifications

115-93-320-41-003000 additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Termination post length0.108\" (2.74mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating30.0µin (0.76µm)
Number of positions or pins20 (2 x 10)

Product details

DIP socket with 0.3" row spacing

The 115-93-320-41-003000 is the 20-position (2 x 10) member of Mill-Max's 115 series open-frame DIP socket line, arranged on 0.3" (7.62mm) row spacing. Gold-plated beryllium copper mating contacts are rated 3 A, with a 30.0µin (0.76µm) gold finish on the mating side and 200.0µin (5.08µm) tin-lead on the post. The operating temperature range is -55°C to 125°C.

Sourcing and pricing

Sourced per RFQ against the BOM quantity. No stock-holding claim; availability confirmed at quote. The part ships in tube packaging.
