Mill-Max Manufacturing Corp. 115-93-632-41-003000 — IC & Device Sockets

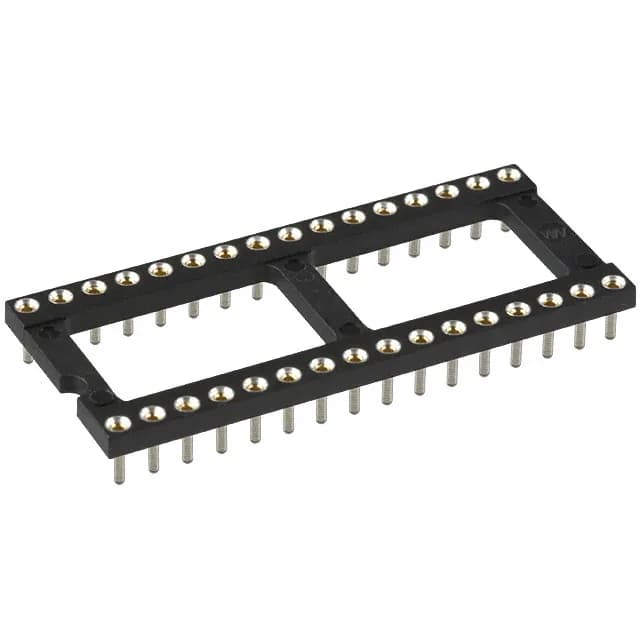

Mill-Max 115-93-632-41-003000 DIP Socket, 32-Pin

MPN115-93-632-41-003000
Active

Mill-Max Manufacturing Corp. 115 series DIP socket, order code 115-93-632-41-003000, 32 positions (2 x 16), 0.100" (2.54mm) pitch, 0.6" (15.24mm) row spacing, gold-plated mating contacts, through-hole solder termination, open frame.

$4.1600Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series115
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

115-93-632-41-003000 key specifications
ParameterValue
TypeDIP, 0.6\" (15.24mm) Row Spacing
Series115
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 125°C
Housing materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact material - postBrass Alloy
Contact material - matingBeryllium Copper
PackageTube
FeaturesOpen Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)

All specifications

115-93-632-41-003000 additional specifications
ParameterValue
Pitch0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact finish - matingGold
Termination post length0.108\" (2.74mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating30.0µin (0.76µm)
Number of positions or pins32 (2 x 16)

Product details

Open-frame DIP socket for 32-pin devices

The 115-93-632-41-003000 is the 32-position (2 x 16) member of Mill-Max's 115 series DIP socket line, accepting devices with 0.6" (15.24mm) row spacing. Mating contacts are beryllium copper with 30.0µin (0.76µm) gold plating rated for repeated device insertion cycles; the post side carries tin-lead finish for solder-joint reliability.

Contact system and housing materials

The open-frame housing is molded from PCT/polyester rated for continuous operation from -55°C to 125°C. Post material is brass alloy with 200.0µin (5.08µm) tin-lead finish; termination post length is 0.108" (2.74mm). Current rating is 3 A per contact. The through-hole solder termination mates with standard 0.100" (2.54mm) pitch board patterns.
