DIP socket, 40 positions, open frame

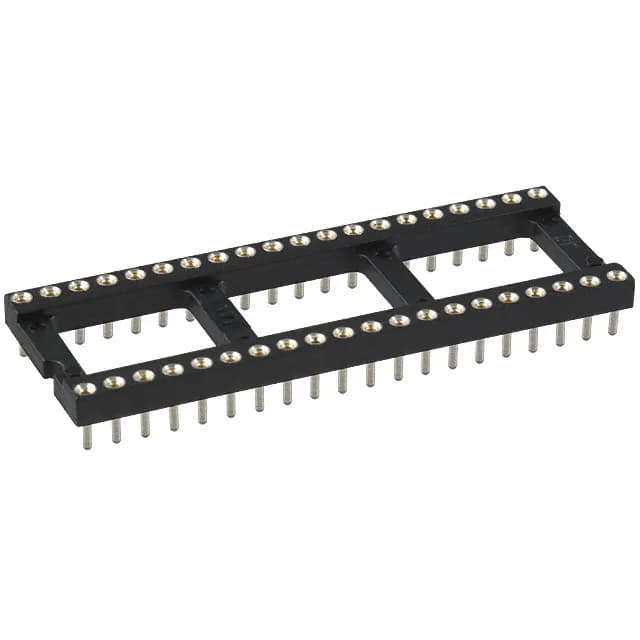

The 115-93-640-41-001000 is the 40-position (2 x 20) member of Mill-Max's 115 series DIP socket line, arranged on 0.600" (15.24 mm) row spacing. Gold-plated beryllium copper mating contacts are rated for 3 A per position over a -55°C to 125°C operating range. The open-frame PCT/polyester housing allows air flow and inspection of solder joints after through-hole mounting.
Pitch and footprint across the 115 series
The 0.100" (2.54 mm) mating and post pitch is shared across the 115 series DIP socket line. The 0.600" (15.24 mm) row spacing matches standard 40-pin DIP packages; the 0.108" (2.74 mm) termination post length suits common PCB thicknesses.
