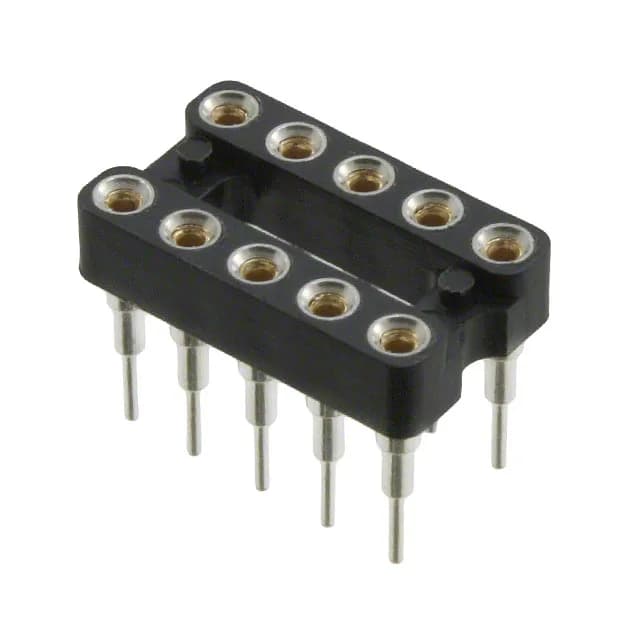

Mill-Max Manufacturing Corp. 116-47-210-41-006000
MPN116-47-210-41-006000
Active
CONN IC DIP SOCKET 10POS GOLD
$1.6100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series116
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.2\" (5.08mm) Row Spacing |
| Series | 116 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Termination post length | 0.118\" (3.00mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 10 (2 x 5) |
