Mill-Max Manufacturing Corp. 117-43-668-41-005000 — IC & Device Sockets

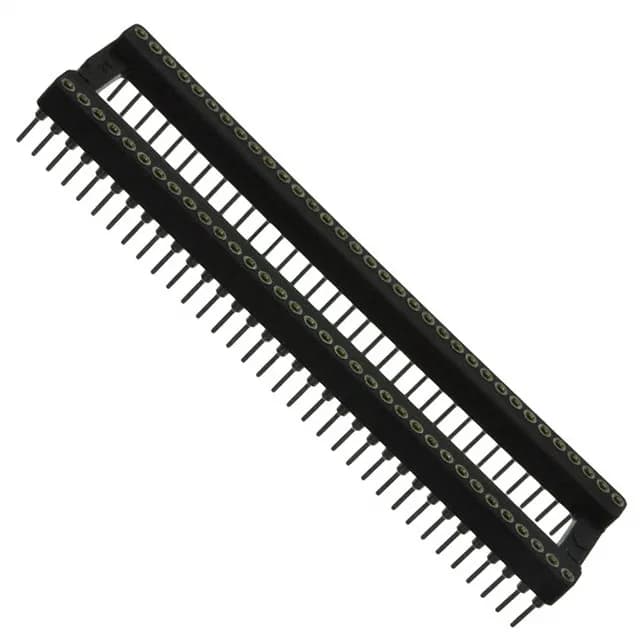

Mill-Max 117-43-668-41-005000 DIP Socket, 68-Pos

MPN117-43-668-41-005000
Active

Mill-Max 117 series DIP socket, order code 117-43-668-41-005000, 68 positions (2 x 34), 0.070" (1.78mm) pitch, 0.6" (15.24mm) row spacing, gold mating contacts, 3 A, through-hole solder termination, open frame.

$11.5500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series117
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

117-43-668-41-005000 key specifications
ParameterValue
TypeDIP, 0.6\" (15.24mm) Row Spacing
Series117
MountingThrough Hole
Current rating3 A
Operating temperature-55°C ~ 125°C
Housing materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Contact material - postBrass Alloy
Contact material - matingBeryllium Copper
Material flammability ratingUL94 V-0
PackageTube
FeaturesOpen Frame
TerminationSolder

All specifications

117-43-668-41-005000 additional specifications
ParameterValue
Pitch - post0.070\" (1.78mm)
Pitch0.070\" (1.78mm)
Contact finish - postTin
Contact finish - matingGold
Termination post length0.125\" (3.18mm)
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating30.0µin (0.76µm)
Number of positions or pins68 (2 x 34)

Product details

Through-hole termination and open-frame body

The 117-43-668-41-005000 is a 68-position (2 x 34) DIP socket from Mill-Max's 117 series, with 0.070" (1.78mm) pitch and 0.6" (15.24mm) row spacing. Gold-plated beryllium copper mating contacts rated 3 A, with tin-plated brass alloy post contacts. The open-frame PCT housing carries a UL94 V-0 flammability rating and operates from -55°C to 125°C.

Pitch and footprint fit

The 0.070" (1.78mm) pitch and 0.6" (15.24mm) row spacing match standard DIP-68 footprints. The 0.125" (3.18mm) termination post length suits through-hole soldering on typical 0.062" to 0.093" PCBs.

Frequently asked questions

What compliance documentation does Mill-Max provide for this socket?

The socket is ROHS3 compliant. The housing material is rated UL94 V-0.
