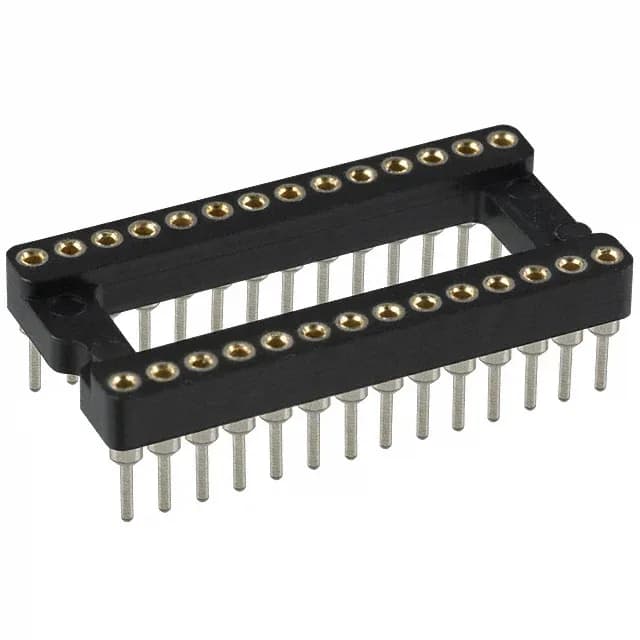

Mill-Max 117 series DIP socket, order code 117-93-428-41-005000, 28 positions (2 x 14), 0.070" (1.78mm) pitch, 0.4" (10.16mm) row spacing, gold-plated mating contacts, through-hole solder termination, open frame.
| Parameter | Value |
|---|---|
| Type | DIP, 0.4\" (10.16mm) Row Spacing |
| Series | 117 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Pitch - post | 0.070\" (1.78mm) |
| Pitch | 0.070\" (1.78mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 28 (2 x 14) |
The 117-93-428-41-005000 is a 28-position (2 x 14) open-frame DIP socket from Mill-Max's 117 series, with 0.070" (1.78mm) pitch on both the mating and post sides and a 0.4" (10.16mm) row spacing. Gold-plated mating contacts rated 3 A, beryllium copper contact material, through-hole solder termination, and a UL94 V-0 rated PCT/polyester housing.
