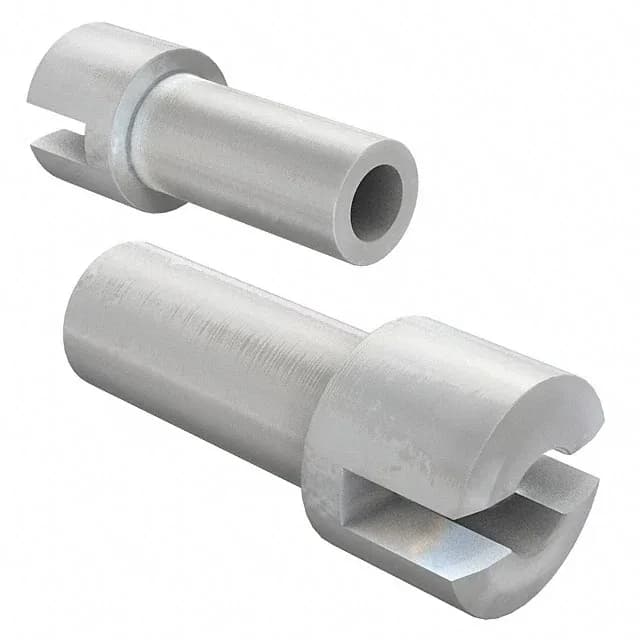

Mill-Max Manufacturing Corp. 2104-4-01-01-00-00-07-0
MPN2104-4-01-01-00-00-07-0
Active
CONN PC PIN CIRC .047DIA TINLEAD
$0.9800Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series2104
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 2104 |
| Mounting | Through Hole |
| Terminal type | PC Pin |
| Mounting hole diameter | 0.036\" (0.91mm) |
| Terminal style | Single End, Slotted |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Contact finish | Tin-Lead |
| Board thickness | 0.125\" (3.18mm) |
| Flange diameter | 0.047\" (1.19mm) |
| Length - overall | 0.218\" (5.54mm) |
| Length - above flange | 0.070\" (1.78mm) |
| Length - below flange | 0.148\" (3.76mm) |
| Pin size - above flange | 0.047\" (1.19mm) Dia |
| Contact finish thickness | 200.0µin (5.08µm) |
