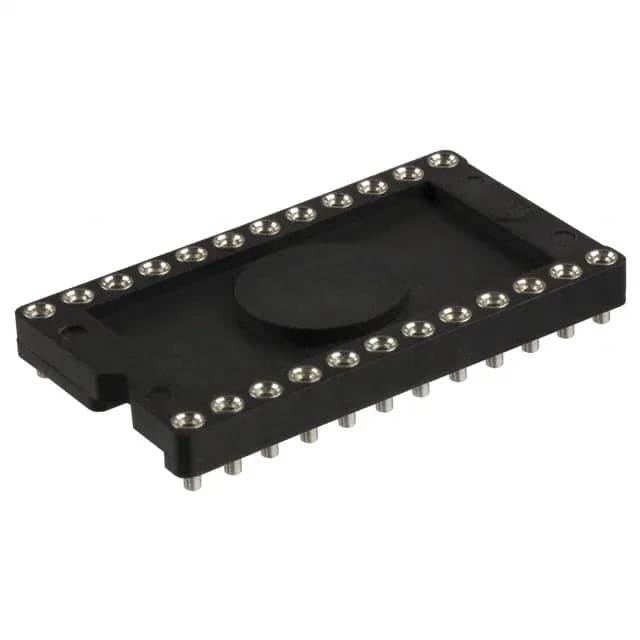

Mill-Max Manufacturing Corp. 214-99-624-01-670800
MPN214-99-624-01-670800
Active
CONN IC DIP SOCKET 24POS TINLEAD
$2.8100Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series214
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 214 |
| Mounting | Surface Mount |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin-Lead |
| Termination post length | 0.056\" (1.42mm) |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
| Number of positions or pins | 24 (2 x 12) |
