Mill-Max Manufacturing Corp. 2302-4-01-01-00-00-07-0 — PCB Single-Post Pins

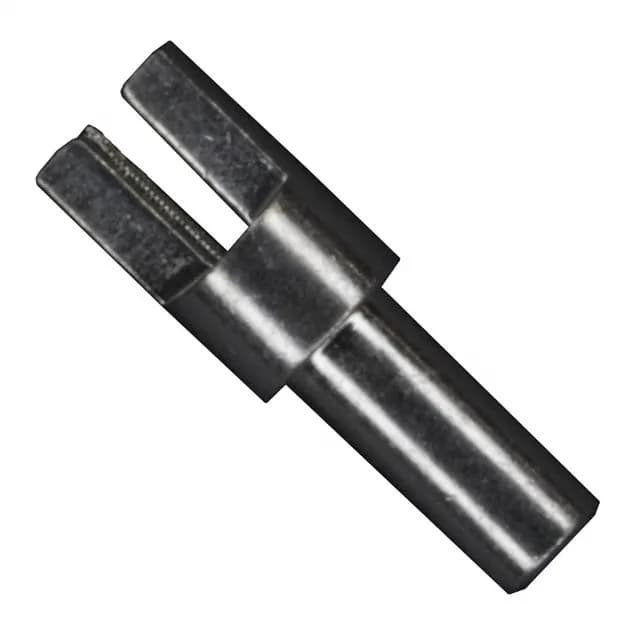

Mill-Max 2302-4-01-01-00-00-07-0 PC Pin, Tin-Lead, Swage

MPN2302-4-01-01-00-00-07-0
Active

Mill-Max 2302 series PC pin, order code 2302-4-01-01-00-00-07-0, single end slotted, 0.094" (2.39 mm) diameter above flange, tin-lead contact finish, 200.0µin (5.08 µm) thickness, swage termination, through hole mounting, bulk package.

$0.8200Ref. price · indicative, final on quote
RoHSRoHS non-compliant
Series2302
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2302-4-01-01-00-00-07-0 specifications
ParameterValue
Series2302
MountingThrough Hole
Terminal typePC Pin
Mounting hole diameter0.067\" (1.70mm)
Terminal styleSingle End, Slotted
Contact materialBrass Alloy
PackageBulk
InsulationNon-Insulated
TerminationSwage
Contact finishTin-Lead
Board thickness0.125\" (3.18mm)
Flange diameter0.094\" (2.39mm)
Length - overall0.303\" (7.70mm)
Length - above flange0.156\" (3.96mm)
Length - below flange0.147\" (3.73mm)
Pin size - above flange0.094\" (2.39mm) Dia
Contact finish thickness200.0µin (5.08µm)

Product details

Swage-terminated PC pin, 0.094" diameter, tin-lead finish

The 2302-4-01-01-00-00-07-0 is a Mill-Max 2302 series PC pin with a single end slotted terminal style, designed for swage termination into a 0.067" (1.70 mm) mounting hole. Overall length is 0.303" (7.70 mm), with 0.156" (3.96 mm) above the flange and 0.147" (3.73 mm) below; the flange diameter is 0.094" (2.39 mm). The pin accepts a board thickness of 0.125" (3.18 mm).

Tin-lead finish, 200.0µin thick, non-insulated

Contact finish is tin-lead at 200.0µin (5.08 µm) thickness over a brass alloy contact material. The pin is non-insulated.
