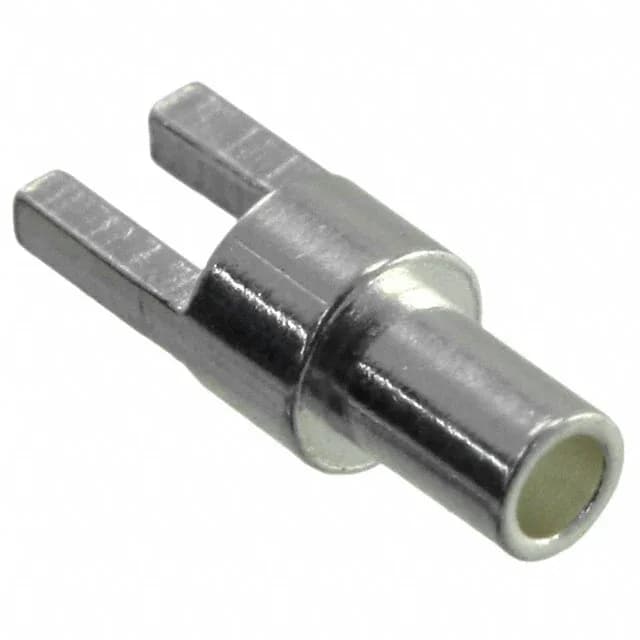

Mill-Max Manufacturing Corp. 2352-2-01-44-00-00-07-0
MPN2352-2-01-44-00-00-07-0
Active
CONN PC PIN CIRC 0.094DIA SILVER
$0.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series2352
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 2352 |
| Mounting | Through Hole |
| Terminal type | PC Pin |
| Mounting hole diameter | 0.067\" (1.70mm) |
| Terminal style | Single End, Slotted |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Contact finish | Silver |
| Board thickness | 0.062\" (1.57mm) |
| Flange diameter | 0.094\" (2.39mm) |
| Length - overall | 0.250\" (6.35mm) |
| Length - above flange | 0.156\" (3.96mm) |
| Length - below flange | 0.094\" (2.39mm) |
| Pin size - above flange | 0.094\" (2.39mm) Dia |
| Contact finish thickness | 300.0µin (7.62µm) |
