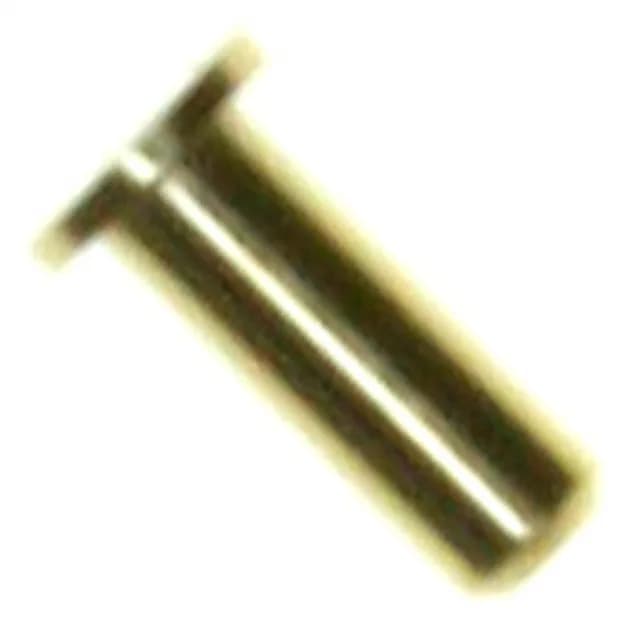

Mill-Max 2381 series PC pin, order code 2381-0-00-15-00-00-33-0, single end nail head style, 0.050" (1.27mm) pin diameter above flange, 0.155" (3.94mm) overall length, gold finish 10.0µin (0.25µm), through-hole solder termination, bulk package.
| Parameter | Value |
|---|---|
| Series | 2381 |
| Mounting | Through Hole |
| Terminal type | PC Pin |
| Mounting hole diameter | 0.054\" (1.37mm) |
| Terminal style | Single End, Nail Head |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.080\" (2.03mm) |
| Length - overall | 0.155\" (3.94mm) |
| Length - above flange | 0.145\" (3.68mm) |
| Pin size - above flange | 0.050\" (1.27mm) Dia |
| Contact finish thickness | 10.0µin (0.25µm) |
The 2381-0-00-15-00-00-33-0 is a non-insulated PC pin from Mill-Max's 2381 series, a single-end nail head style pin for through-hole solder termination. Pin diameter above the flange is 0.050" (1.27mm) with an overall length of 0.155" (3.94mm). The gold contact finish at 10.0µin (0.25µm) suits repeated mating cycles without corrosion.
Quoted to order against the BOM quantity; lead time confirmed at RFQ.
