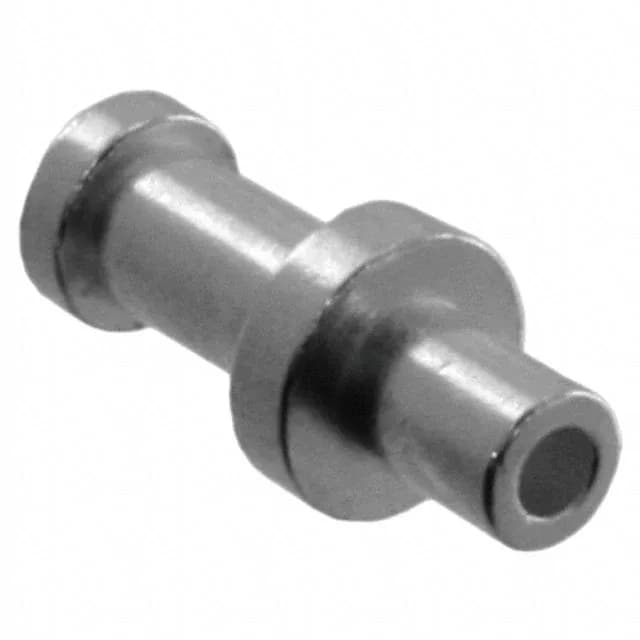

Mill-Max Manufacturing Corp. 2505-2-00-44-00-00-07-0
MPN2505-2-00-44-00-00-07-0
Active
TERM TURRET SINGLE L=4.75MM
$0.4000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series2505
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 2505 |
| Mounting | Through Hole |
| Terminal type | Single End |
| Mounting hole diameter | 0.076\" (1.93mm) |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Contact finish | Silver |
| Board thickness | 0.062\" (1.57mm) |
| Flange diameter | 0.125\" (3.18mm) |
| Staking side ID | 0.043\" (1.09mm) |
All specifications
| Parameter | Value |
|---|---|
| Staking side OD | 0.071\" (1.80mm) |
| Length - overall | 0.280\" (7.11mm) |
| Number of turrets | Single |
| Length - above board | 0.187\" (4.75mm) |
| Length - below flange | 0.093\" (2.36mm) |
| Diameter - turret head | 0.097\" (2.46mm) |
| Contact finish thickness | 300.0µin (7.62µm) |
