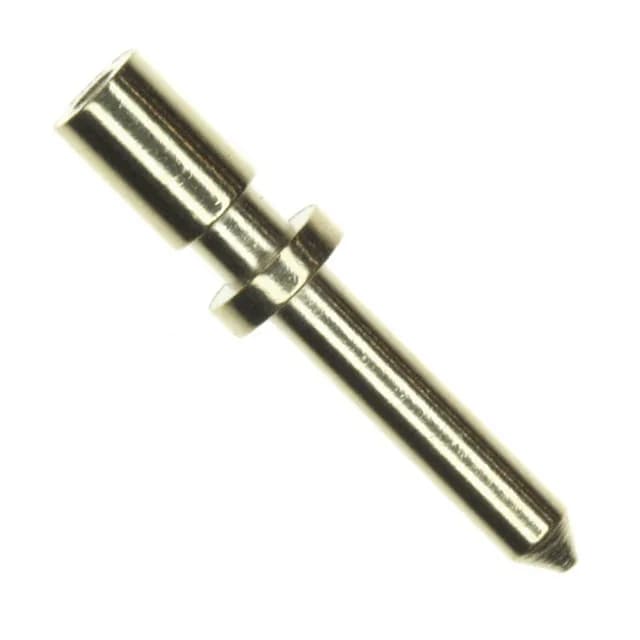

Mill-Max Manufacturing Corp. 3139-0-00-21-00-00-08-0
MPN3139-0-00-21-00-00-08-0
Active
CONN PC PIN CIRC 0.049DIA GOLD
$0.5400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series3139
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3139 |
| Mounting | Free Hanging (In-Line) |
| Terminal type | PC Pin |
| Terminal style | Wire |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Contact finish | Gold |
| Flange diameter | 0.093\" (2.36mm) |
| Length - overall | 0.430\" (10.92mm) |
| Length - above flange | 0.249\" (6.32mm) |
| Length - below flange | 0.156\" (3.96mm) |
| Pin size - above flange | 0.049\" (1.24mm) Dia |
| Pin size - below flange | 0.071\" (1.80mm) Dia |
| Contact finish thickness | 20.0µin (0.51µm) |
