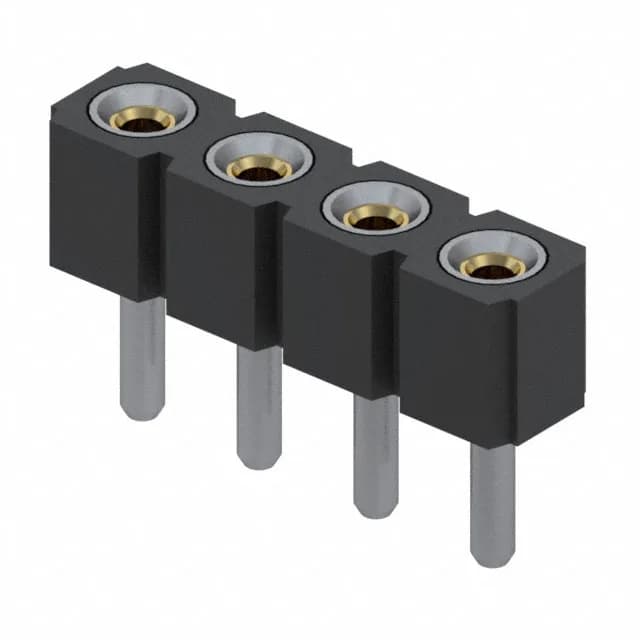

Mill-Max Manufacturing Corp. 315-43-104-41-001000
MPN315-43-104-41-001000
Active
CONN RCPT 4POS 0.1 GOLD PCB
$0.7700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series315
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 315 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100V, 150VDC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.108\" (2.75mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
