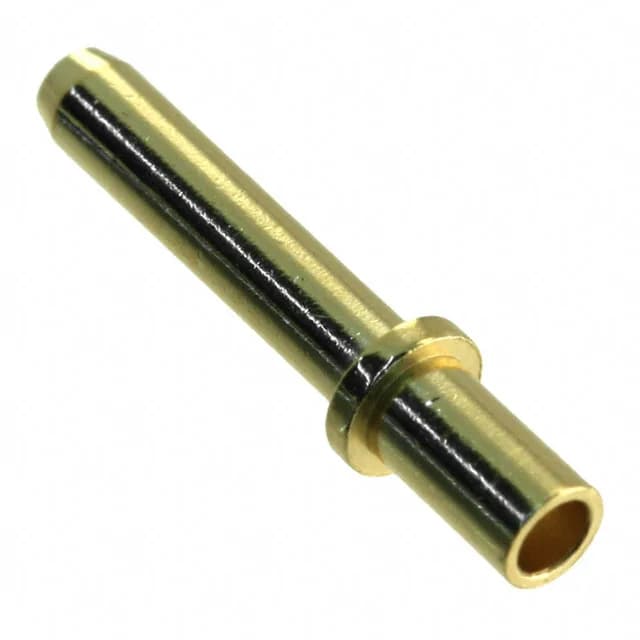

Mill-Max Manufacturing Corp. 3231-4-00-15-00-00-08-0
MPN3231-4-00-15-00-00-08-0
Active
CONN PC PIN CIRC 0.080DIA GOLD
$0.6900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series3231
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3231 |
| Mounting | Through Hole |
| Terminal type | PC Pin |
| Mounting hole diameter | 0.094\" (2.39mm) |
| Terminal style | Single End |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Swage |
| Contact finish | Gold |
| Board thickness | 0.125\" (3.18mm) |
| Flange diameter | 0.125\" (3.18mm) |
| Length - overall | 0.556\" (14.12mm) |
| Length - above flange | 0.375\" (9.53mm) |
| Length - below flange | 0.156\" (3.96mm) |
| Pin size - above flange | 0.080\" (2.03mm) Dia |
| Contact finish thickness | 10.0µin (0.25µm) |
