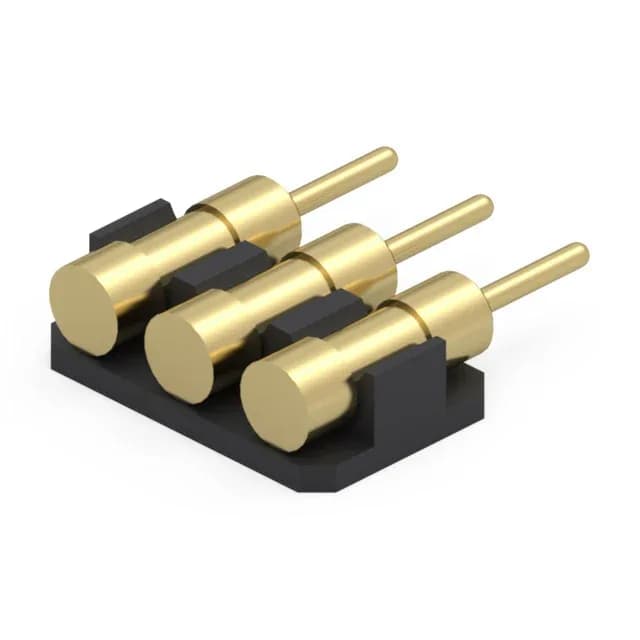

Mill-Max Manufacturing Corp. 328-10-103-40-020001

Mill-Max Manufacturing Corp. 328-10-103-40-020001

MPN 328-10-103-40-020001
Active

CONN HEADER SMD R/A 3POS 2.54MM

$2.9158 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Series328
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

328-10-103-40-020001 key specifications
ParameterValue
Series328
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typePush-Pull
Contact materialBrass Alloy
Insulation colorBlack
Insulation height0.083\" (2.10mm)
Insulation materialPolyamide (PA46), Nylon 4/6
StyleBoard to Board
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder

All specifications

328-10-103-40-020001 additional specifications
ParameterValue
Contact shapeCircular
Rows1
Pitch0.100\" (2.54mm)
Positions3
Contact finish - postGold
Overall contact length0.330\" (8.38mm)
Contact finish - matingGold
Contact length - mating0.125\" (3.18mm)
Contact finish thickness - post10.0µin (0.25µm)
Contact finish thickness - mating10.0µin (0.25µm)
