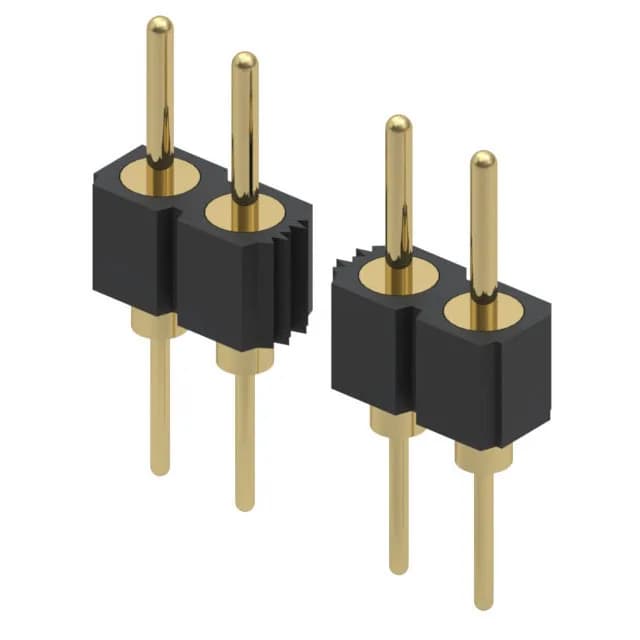

Mill-Max Manufacturing Corp. 350-10-164-00-001000
MPN350-10-164-00-001000
Active
CONN HEADER VERT 64POS 2.54MM
$11.2500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series350
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 350 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 64 |
| Contact finish - post | Gold |
| Contact length - post | 0.157\" (4.00mm) |
| Overall contact length | 0.477\" (12.12mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.166\" (4.22mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
