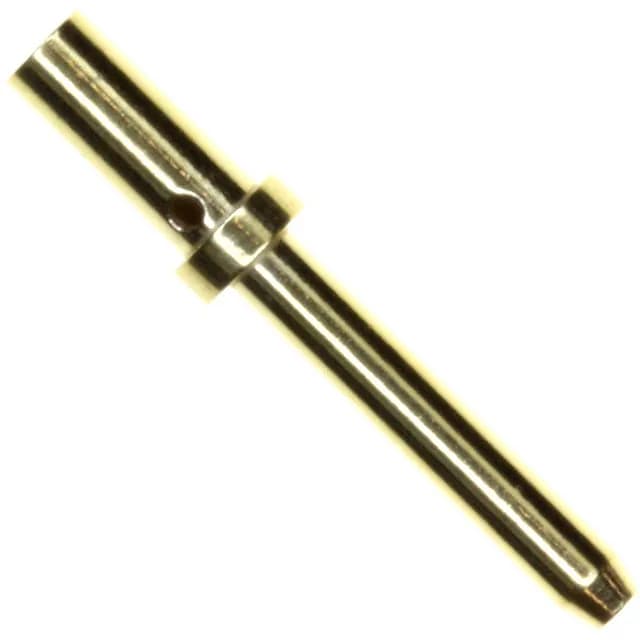

Mill-Max Manufacturing Corp. 3609-3-07-21-00-00-08-0
MPN3609-3-07-21-00-00-08-0
Active
CONN PC PIN CIRC 0.080DIA GOLD
$1.4900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series3609
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3609 |
| Mounting | Free Hanging (In-Line) |
| Terminal type | PC Pin |
| Terminal style | Wire |
| Contact material | Brass Alloy |
| Package | Bulk |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Contact finish | Gold |
| Flange diameter | 0.142\" (3.61mm) |
| Length - overall | 0.796\" (20.22mm) |
| Length - above flange | 0.500\" (12.70mm) |
| Length - below flange | 0.250\" (6.35mm) |
| Pin size - above flange | 0.080\" (2.03mm) Dia |
| Pin size - below flange | 0.103\" (2.62mm) Dia |
| Contact finish thickness | 20.0µin (0.51µm) |
