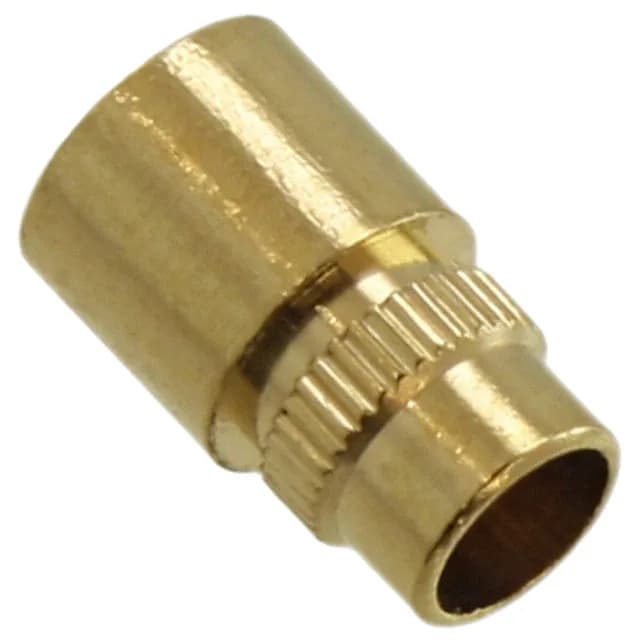

Mill-Max Manufacturing Corp. 3808-0-15-15-02-14-10-0
MPN3808-0-15-15-02-14-10-0
Active
CONN PIN RCPT .040-.050 KNURL
$0.7000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series3808
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 3808 |
| Tail type | No Tail |
| Mounting hole diameter | 0.090\" (2.29mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.175\" (4.45mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Press-Fit, Knurled |
| Contact finish | Gold |
| Flange diameter | 0.105\" (2.67mm) |
| Length - overall | 0.175\" (4.45mm) |
| Pin hole diameter | 0.068\" (1.73mm) |
| Accepts pin diameter | 0.040\" ~ 0.050\" (1.02mm ~ 1.27mm) |
| Contact finish thickness | 10.0µin (0.25µm) |
