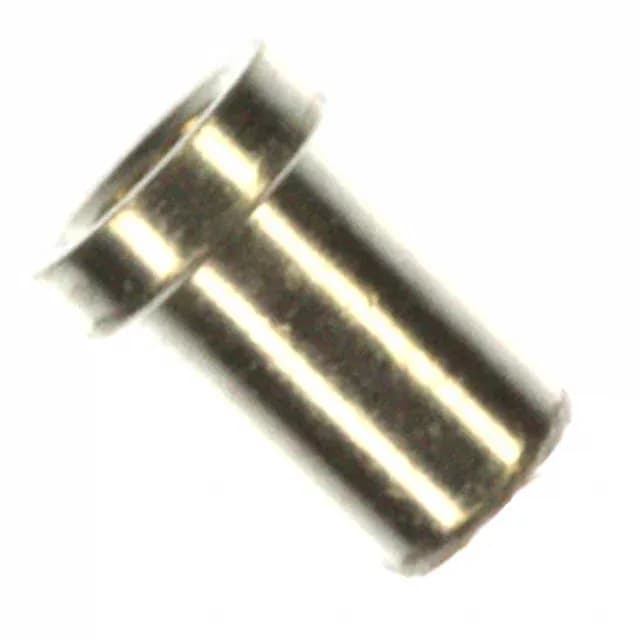

Mill-Max Manufacturing Corp. 4015-0-67-80-30-27-10-0
MPN4015-0-67-80-30-27-10-0
Active
CONN PIN RCPT .015-.025 SOLDER
$0.9000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series4015
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 4015 |
| Tail type | No Tail |
| Mounting hole diameter | 0.057\" (1.45mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.100\" (2.54mm) |
| Contact material | Beryllium Copper |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Knockout Bottom (Organic Fiber Plug®) |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.068\" (1.73mm) |
| Length - overall | 0.100\" (2.54mm) |
| Pin hole diameter | 0.043\" (1.09mm) |
| Accepts pin diameter | 0.015\" ~ 0.025\" (0.38mm ~ 0.64mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
