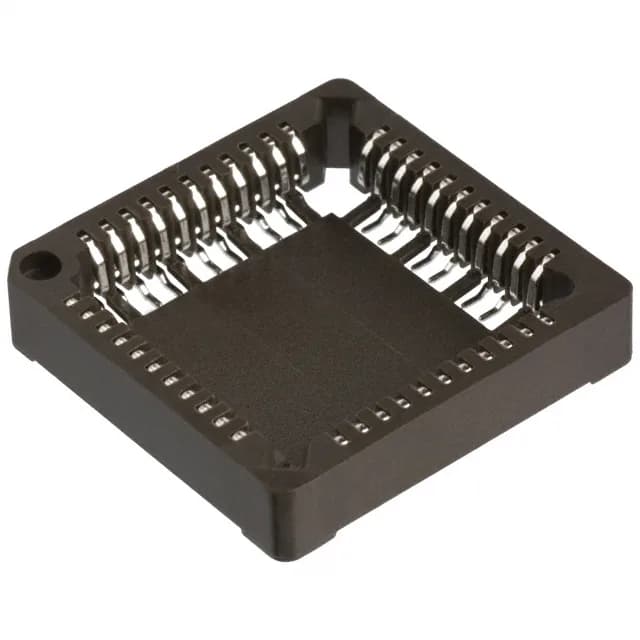

Mill-Max Manufacturing Corp. 540-44-044-17-400000
MPN540-44-044-17-400000
Active
CONN SOCKET PLCC 44POS TIN
$4.5000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series540
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | PLCC |
| Series | 540 |
| Mounting | Surface Mount |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polyphenylene Sulfide (PPS) |
| Contact material - post | Copper Alloy |
| Contact material - mating | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.050\" (1.27mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.050\" (1.27mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
| Number of positions or pins | 44 (4 x 11) |
