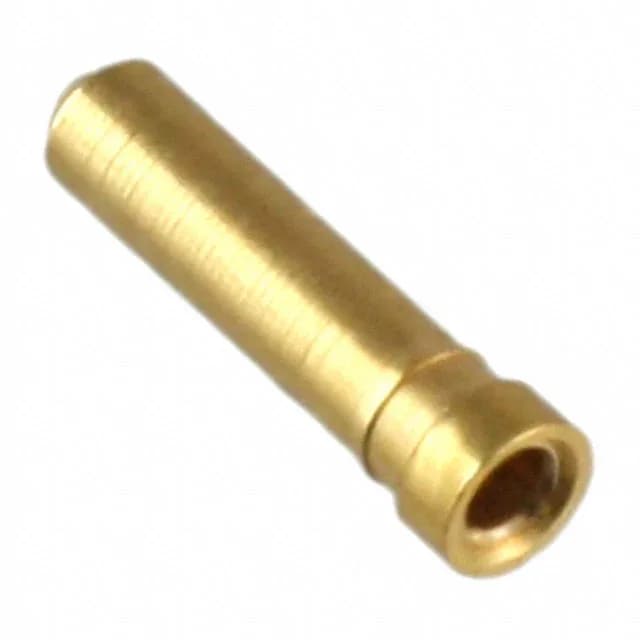

Mill-Max Manufacturing Corp. 6857-0-15-15-47-27-10-0
MPN6857-0-15-15-47-27-10-0
Active
CONN PIN RCPT .025-.037 PRESSFIT
$0.4800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series6857
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 6857 |
| Tail type | No Tail |
| Mounting hole diameter | 0.062\" (1.57mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.230\" (5.84mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Press-Fit |
| Contact finish | Gold |
| Flange diameter | 0.072\" (1.83mm) |
| Length - overall | 0.280\" (7.11mm) |
| Pin hole diameter | 0.051\" (1.30mm) |
| Accepts pin diameter | 0.025\" ~ 0.037\" (0.64mm ~ 0.94mm) |
| Accepts square pin size | 0.025\" (0.64mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
