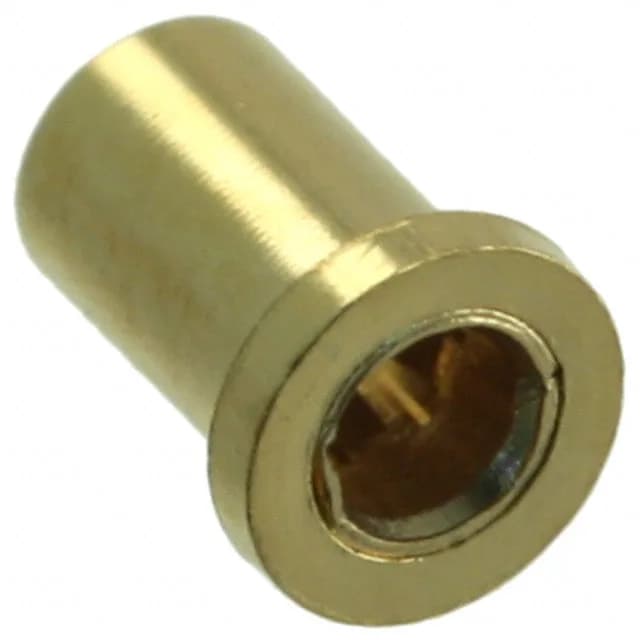

Mill-Max Manufacturing Corp. 7305-0-15-15-47-27-10-0
MPN7305-0-15-15-47-27-10-0
Active
CONN PIN RCPT .025-.037 SOLDER
$0.4500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | 7305 |
| Tail type | No Tail |
| Mounting hole diameter | 0.060\" (1.52mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.105\" (2.67mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.077\" (1.96mm) |
| Length - overall | 0.105\" (2.67mm) |
| Pin hole diameter | 0.051\" (1.30mm) |
| Accepts pin diameter | 0.025\" ~ 0.037\" (0.64mm ~ 0.94mm) |
| Accepts square pin size | 0.025\" (0.64mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
Sourcing this connector
Mill-Max Manufacturing Corp. 7305-0-15-15-47-27-10-0 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Mill-Max Manufacturing Corp. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
