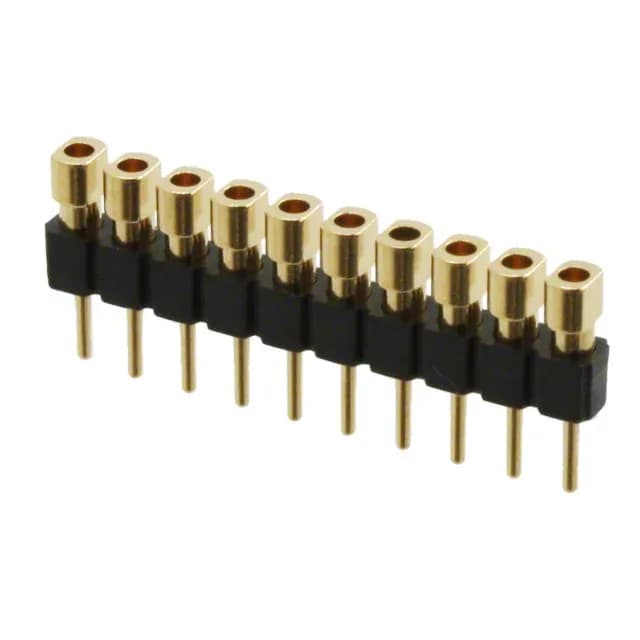

Mill-Max Manufacturing Corp. 800-10-010-40-002000
MPN800-10-010-40-002000
Active
CONN HEADER SMD 10POS 2.54MM
$10.2700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series800
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 800 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - mating | Gold |
| Contact length - mating | 0.147\" (3.73mm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
