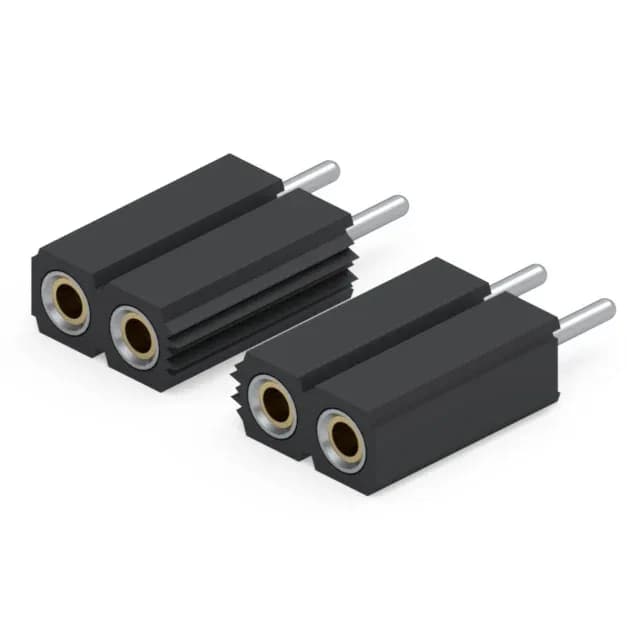

Mill-Max Manufacturing Corp. 801-43-050-10-001000 — Female Socket Headers

Mill-Max Manufacturing Corp. 801-43-050-10-001000

MPN801-43-050-10-001000
Active

CONN RCPT 50POS 0.1 GOLD PCB

$9.0800Ref. price · indicative, final on quote
Mill-Max Manufacturing Corp. 801-43-050-10-001000 datasheet (PDF)
RoHSROHS3 Compliant
Series801
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

801-43-050-10-001000 key specifications
ParameterValue
Series801
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Current rating4.5A
Operating temperature-55°C ~ 125°C
Contact materialBeryllium Copper
Insulation colorBlack
Insulation height0.276\" (7.00mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material flammability ratingUL94 V-0

All specifications

801-43-050-10-001000 additional specifications
ParameterValue
StyleBoard to Board
PackageTube
TerminationSolder
Contact shapeCircular
Rows1
Pitch0.100\" (2.54mm)
Positions50
Contact finish - postTin
Contact length - post0.118\" (3.00mm)
Contact finish - matingGold
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating30.0µin (0.76µm)
