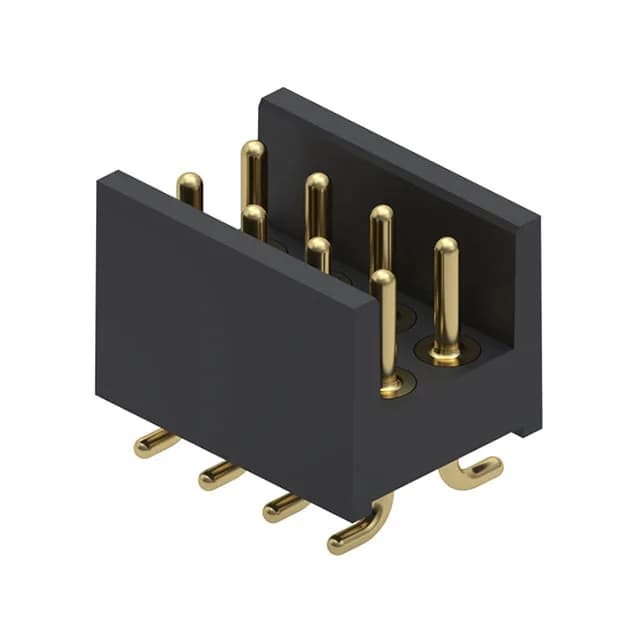

Mill-Max Manufacturing Corp. 802-10-008-30-052000
MPN802-10-008-30-052000
Active
CONN HEADER SMD 8POS 2.54MM
$8.1500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series802
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 802 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Brass Alloy |
| Insulation color | Black |
| Insulation height | 0.271\" (6.88mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Shrouded - 2 Wall |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
