Mill-Max Manufacturing Corp. 803-43-008-20-001000 — Female Socket Headers

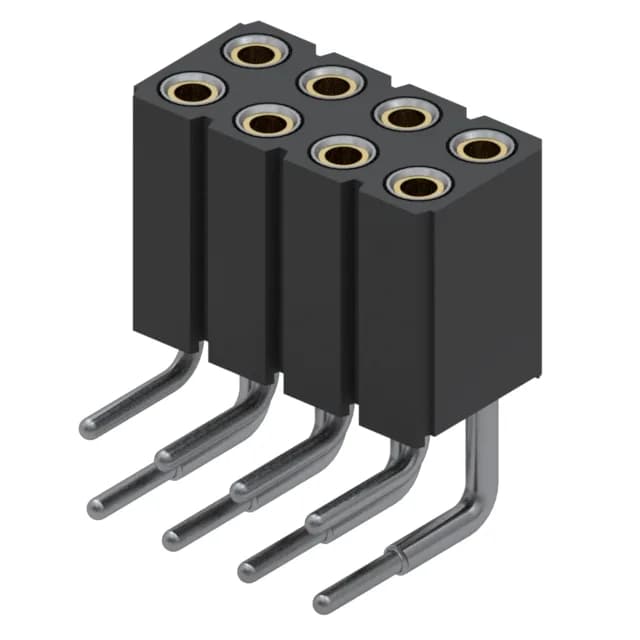

Mill-Max Manufacturing Corp. 803-43-008-20-001000

MPN803-43-008-20-001000
Active

CONN RCPT 8POS 0.1 GOLD PCB R/A

$2.6200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series803
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

803-43-008-20-001000 key specifications
ParameterValue
Series803
TypeFemale Socket
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Current rating4.5A
Operating temperature-55°C ~ 125°C
Contact materialBeryllium Copper
Insulation colorBlack
Insulation height0.200\" (5.08mm)
Insulation materialPolycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material flammability ratingUL94 V-0

All specifications

803-43-008-20-001000 additional specifications
ParameterValue
StyleBoard to Board
PackageBulk
TerminationSolder
Contact shapeCircular
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact finish thickness - post200.0µin (5.08µm)
Contact finish thickness - mating30.0µin (0.76µm)
