Mill-Max Manufacturing Corp. 813-22-016-30-001101 — Spring-Loaded Contacts

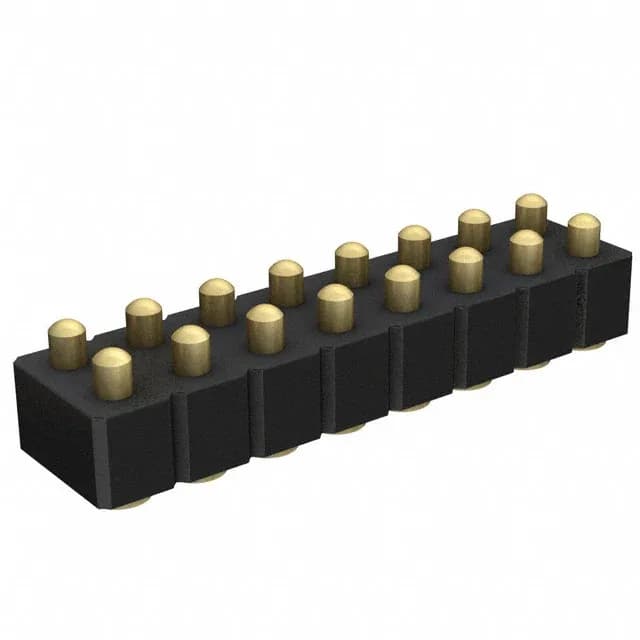

Mill-Max 813-22-016-30-001101 Spring Piston 16POS SMD

MPN813-22-016-30-001101
Active

Mill-Max 813 series spring piston connector, order code 813-22-016-30-001101, 16 contacts, dual row, 0.100" (2.54mm) pitch, gold contact finish, surface-mount, bulk package.

$8.5200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series813
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

813-22-016-30-001101 specifications
ParameterValue
Series813
MountingSurface Mount
Connector typePiston
Positions16
MaterialCopper Alloy
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Contact finish thickness20.0µin (0.51µm)

Product details

Spring-piston 16-contact SMD

The 813-22-016-30-001101 is a 16-contact spring-loaded piston connector from Mill-Max's 813 series, designed for surface-mount board-to-board or test-point applications where a compliant, wipe-free interconnect is required. Contacts are arranged in two rows at 0.100" (2.54mm) pitch with matching row spacing, and the mating interface carries a 20.0µin (0.51µm) gold finish on copper alloy.

Dual-row 0.100" pitch layout

The 16 contacts are laid out in two rows with 0.100" (2.54mm) pitch and 0.100" (2.54mm) row spacing — the same grid as standard 0.100" headers, allowing direct footprint compatibility with common DIP or SIP patterns.
