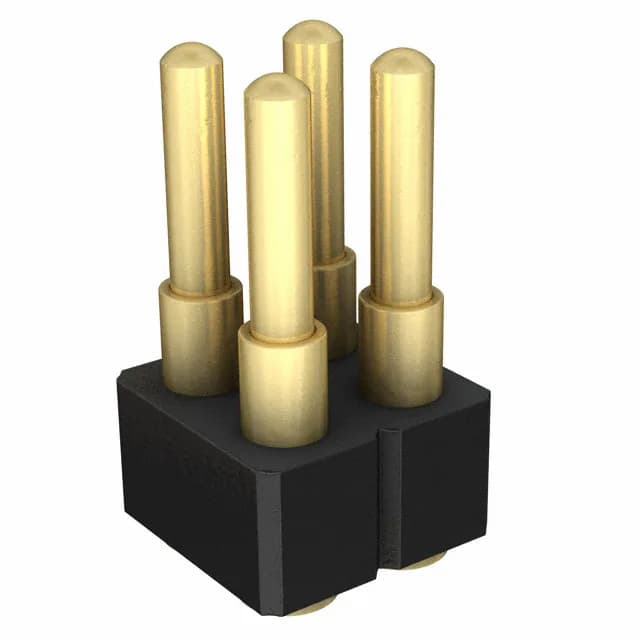

Mill-Max Manufacturing Corp. 814 series spring-loaded piston connector, order code 814-22-004-30-001101, 4 contacts, dual row, 0.100" (2.54mm) pitch, gold 20.0µin (0.51µm) contact finish, surface-mount solder termination, bulk package.
| Parameter | Value |
|---|---|
| Series | 814 |
| Mounting | Surface Mount |
| Connector type | Piston |
| Positions | 4 |
| Material | Copper Alloy |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Contact finish | Gold |
| Rows | 2 |
| Contact finish thickness | 20.0µin (0.51µm) |
The 814-22-004-30-001101 is the 4-contact member of Mill-Max's 814 series spring-loaded piston connector line, designed for surface-mount soldering to the board.
Dual-row layout at 0.100" (2.54mm) pitch with 0.100" (2.54mm) row spacing — the footprint matches standard 0.100" grid patterns, simplifying PCB layout across the 814 series.
The 814-22-004-30-001101 uses a dual-row layout with 0.100" (2.54mm) pitch and 0.100" (2.54mm) row spacing, 4 contacts total.
