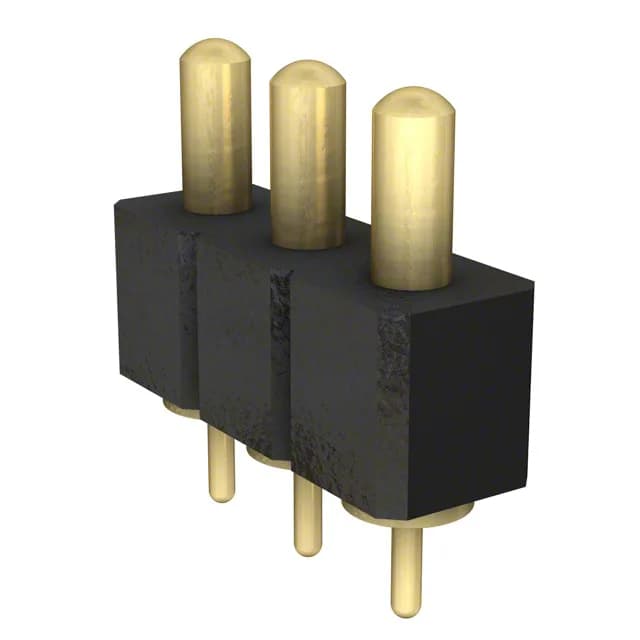

Mill-Max 821 series spring-loaded piston connector, order code 821-22-003-10-004101, 3 contacts, single row, 0.100" (2.54 mm) pitch, gold-plated copper alloy contacts, through-hole mount, bulk package.
| Parameter | Value |
|---|---|
| Series | 821 |
| Mounting | Through Hole |
| Connector type | Piston |
| Positions | 3 |
| Material | Copper Alloy |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Contact finish | Gold |
| Rows | 1 |
| Contact finish thickness | 20.0µin (0.51µm) |
The 821-22-003-10-004101 is the 3-contact member of Mill-Max's 821 series spring-loaded piston connector line. Gold-plated copper alloy contacts on a 0.100" (2.54 mm) pitch, through-hole mount — the single-row layout matches the board footprint of a standard 3-pin header.
The part is RoHS3 compliant. No UL or IEC certification is listed in the available documentation.
