Mill-Max Manufacturing Corp. 824-22-004-00-001000 — Spring-Loaded Contacts

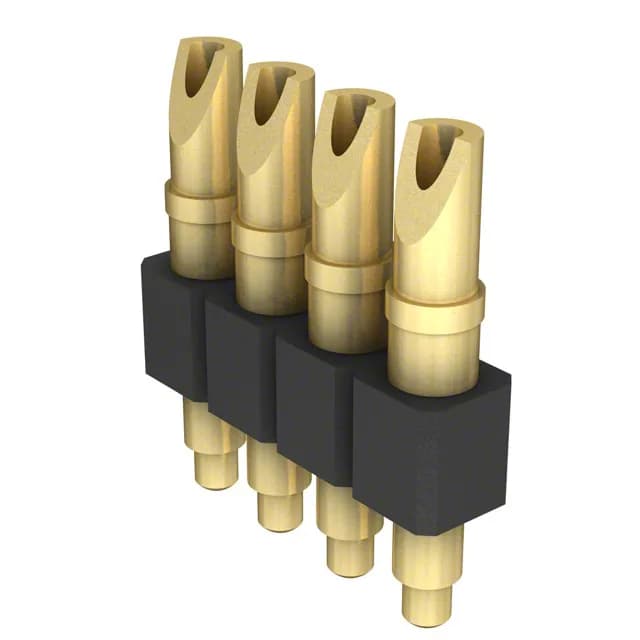

Mill-Max 824-22-004-00-001000 Spring Piston 4POS 2.54mm

MPN824-22-004-00-001000
Active

Mill-Max 824 series spring-loaded piston connector, order code 824-22-004-00-001000, 4 contacts, single row, 0.100" (2.54mm) pitch, gold-plated beryllium copper contacts, through-hole solder cup termination, bulk package.

$4.4600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series824
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

824-22-004-00-001000 specifications
ParameterValue
Series824
MountingThrough Hole, Solder Cup
Connector typePiston
Positions4
MaterialBeryllium Copper
Pitch0.100\" (2.54mm)
PackageBulk
Contact finishGold
Rows1
Contact finish thickness20.0µin (0.51µm)

Product details

4-contact spring piston for test and interconnect

The 824-22-004-00-001000 is the 4-contact member of Mill-Max's 824 series spring-loaded piston line, terminated through-hole with solder cups. Contacts are beryllium copper with 20.0µin (0.51µm) gold finish, single-row layout at 0.100" (2.54mm) pitch.

Contact material and finish

Beryllium copper spring contacts with 20.0µin (0.51µm) gold plating provide consistent electrical contact across repeated compression cycles.

Frequently asked questions

What is the pitch and contact count on this spring-loaded piston connector?

The 824-22-004-00-001000 has 4 contacts in a single row at 0.100" (2.54mm) pitch.
